1. Product Name: Ethernet Protocol Converter ModbusRTU to Modbus TCP Interface Protocol Converter
2. Techinical Parameter
9 to 36VDC,reverse connection protection.
DC-DC isolated power supply, 3000V isolation.
Support address mapping mode, to achieve a quick response to the TCP client request.
32-bit core CPT.
Buffer size: 4K
Data directly exchange.
EMC complies to 55022:2010 EN & EN55024:2010 international standards.
10/100M auto-sensing, MDI/MDIX
2500V isolation on CAN interface.
3. Special function
Broadcasting storms relieving.
Dual Ethernet port, with the switch function, support cascade.
Supports up to 10 TCP connections.
Mapping mode support Modbus function code:0x01,0x02,0x03,0x04,0x05,0x06,0x0F,0x10.
Industrial grade compenets, operating temperature from -25℃ to 70℃, and -14℃ to 85℃ version available.
Complies with DS301 standard, supports NMT,SDO,PDO,SYNC,Heartbeat,Guardlife, Emergency function.

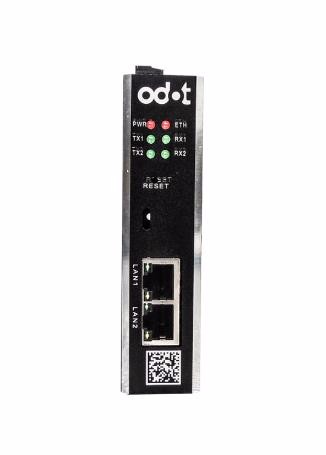

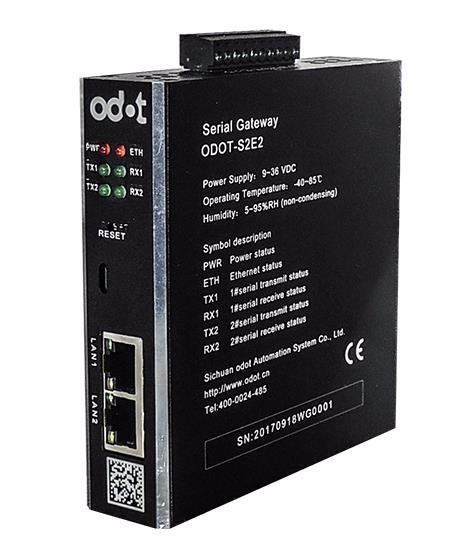

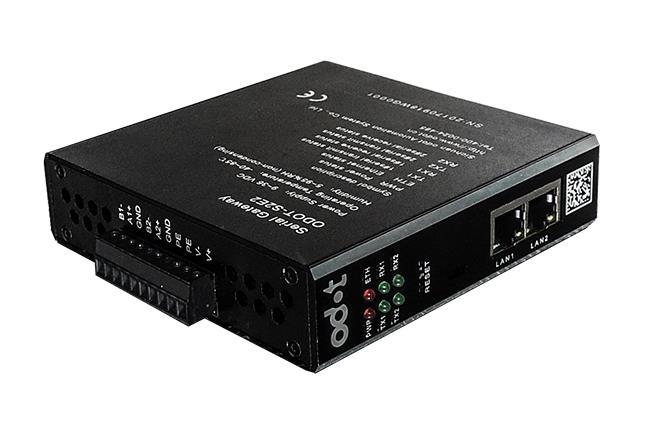

4. Product Pictures
