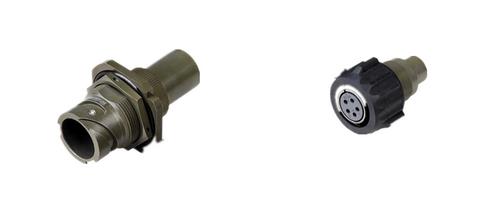

YG123 circular connector
Product parameters:
Rated voltage | 500V |
Rated current | 13A |
Contact resistance | ≤3mΩ |
Insulation resistance | ≥5000 MΩ(normal) |
Withstand voltage | 50Hz AC 2000V for 1min,no breakdown and flashover |
Number of contacts | 5 pins |
Male/Female | |
Service life | 750 |
Insertion and separate force | 2~5N |
Protection level | IP67 |
Operation Temperature | -40℃~+125℃ |
Relative Humidity | ≤95%(at 40℃) |
Material | Silicon rubber |
Flammability | DIN 5510 |
Surface treatment | Ni plating |
Color | Army green |
Application | |
Package | Carton |
Packaging & Delivery
Packaging Details：Carton
Delivery Time：25 days
