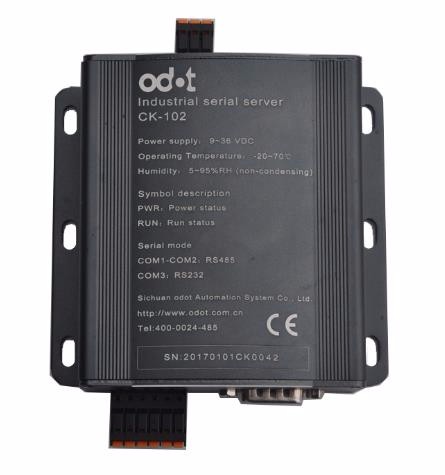

1.Product Introduction: This is a serial RS232/485/422 to TCP/IP network interface, used for data dual transparent transmission. It makes the serial device can immediately have the TCP/IP network interface function and proceed the network data communication. It greatly expanded the communication distance of the serial device.

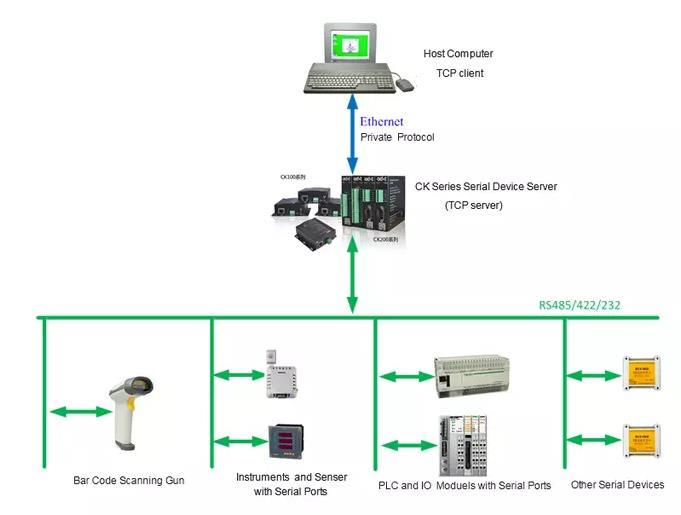

2.Topological Graph
3.Main Technical Parameters
9 -36VDC wide range power input.
Aluminum extrusion profiles.
Various interfaces, such as RS232,RS485,RS422and etc.
Baud rate 1200~115200bps; Check bit of None, Odd, Even.
COM1:RS485COM2:RS485, COM3:RS232 (total:3 roads)
Each RS232 port could connect to one corresponding serial device,Max.31 corresponding serial devices for each RS485/422 interface.

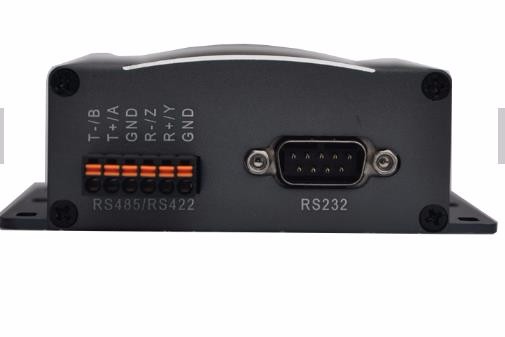

Connector type:RS232: DB9 male head, RS485/422: 3.5mm terminals.
Coommunication methods:Serial device server/Data transparent transmission.
