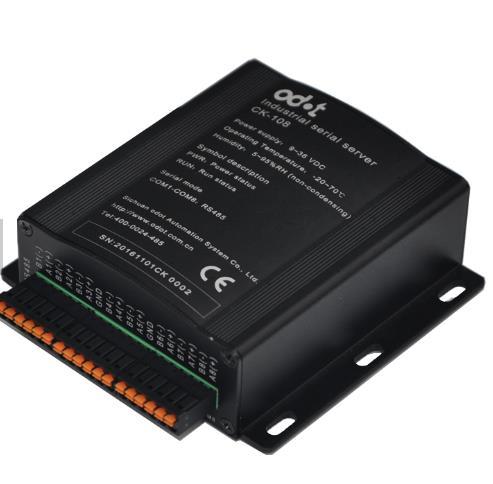

Product Introduction:This is a serial RS232/485/422 to TCP/IP network interface, used for data dual transparent transmission. It makes the serial device can immediately have the TCP/IP network interface function and proceed the network data communication. It greatly expanded the communication distance of the serial device.

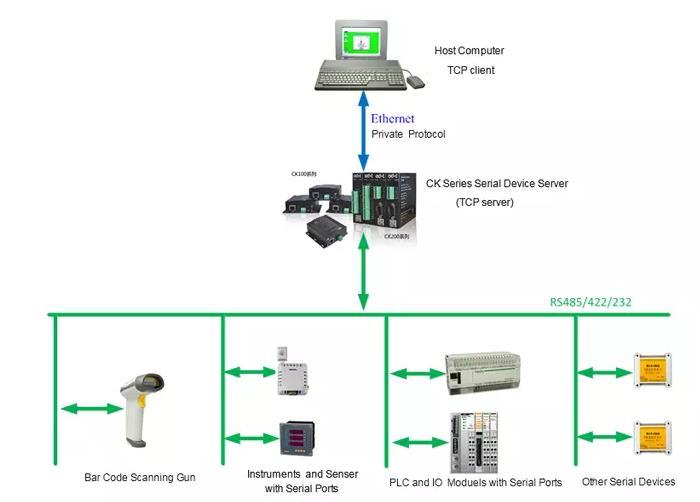

Topological Graph:
Main Technical Parameters
1.9 -36VDC wide range power input.
2.Aluminum extrusion profiles.
3.Various interfaces, such as RS232,RS485,RS422and etc.
4.Baud rate 1200-115200bps; Check bit of None, Odd, Even
5.Numbers of serial ports:COM1- COM8:RS485(total:8 roads).
6.Each RS232 port could connect to one corresponding serial device,Max.31 corresponding serial devices for each RS485/422 interface

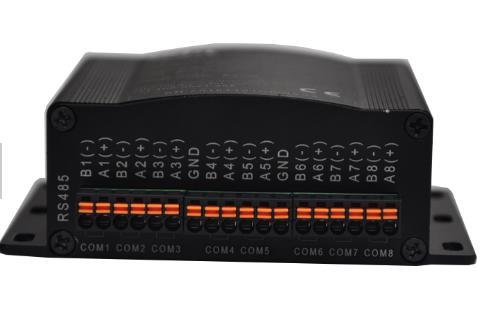

7.Connector type:RS232: DB9 male head, RS485/422: 3.5mm terminals.
