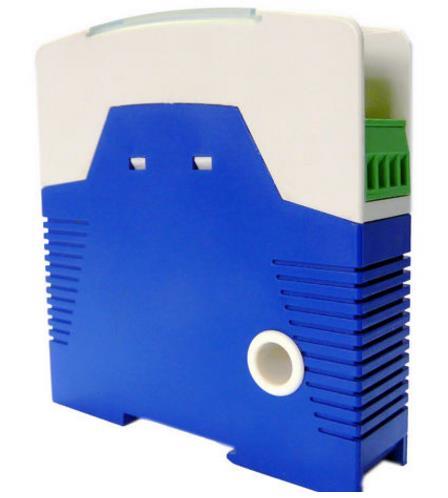

RS485 Single Phase Multifunctional Transducer WB6810H5

Price:
Pieces
80.00
1 + Pieces
< >
Please select a Color
Please select a Size
- + Piece
This product can't be shipped to the selected region by express delivery.If you want to buy this product,you can click inquire now to contact seller
Depends on the product properties you select


Dimensions: Length 102mm Width 23.4 Height 101mm

When make orders, please kindly confim the Rated Input, Power Supply and Communication Configuration.

INPUT

 Aperture: Ø 9mm

 Input Range: AC 57.7V;100V;220V;380V;600V

          AC 1A;5A;10A;30A;50A;

 Linear Range: Voltage10% - 120% rated input value;

           Current 1% - 120% rated input value;

           Cos Ø: 0.1 (lag) - 1.0 - 0.1( lead)

 Frequency Range: 45Hz - 65 Hz;

 Input Impedance: Ru = 2m Ohm;

 Allowed Over Load:

   Voltage: 2 times of rated input current, continuous 1 second; Interval 10 seconds, repeat 10 times;

   Current: 20 times of rated input current, continuous 1 second; Interval 300 seconds, repeat 5 times;

OUTPUT: RS 485 BUS INTERFACE

 Output Specifications: Real Value (with calculation factor);

 Accuracy Class: Current, Voltage 0.2%;

 Frequency: 0.02Hz

 Active Power, Reactive Power: 0.5

 Active Energy, Reactive Energy: 1.0

 Data Updating Period: 60 ms;

 Communication Mode: Half - Duplex, RS485;

 Baud Rate (bps) : 4800 /9600 / 19200 / 38400 (can be configured with DIP switchs, default setting 9600 bps);

 Communication Distance: 1200 meters;

 Communication Nodes: 32

Other Technical Specifications:

 Power Supply: +12 V dc; +24V dc;

 Static Current: 45mA (12V dc); 15mA ( 24V dc);

 EMC Index:

   Static: Grade 3; Pulse Train: Grade 3; Surge Immunity: Grade 3; Conduction Imunity: Grade 2;

   Radiation Immunity Grade: 2; Conduct Transmission Grade A; Radiation Transmission Grade: A;

 Working Temperature: -25 c - +70 c;

 Isolation: Total Galvanic Isolation between Input, Output, Power Supply;

 Isolation Voltage: 2500 V DC;

 Thermal Drift: 200 ppm;

 MTBF: 50000 HOURS;

 Housing Material: Flame retarded ABS (UL94V-0);

 Installation: DIN Rail mounting or M3 Screw
