YG145 series Electrical connector

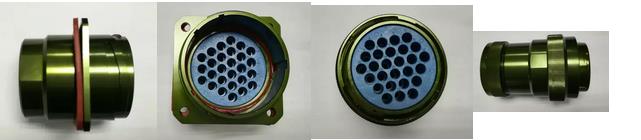

YG145 circular connector
Product parameters:
Rated voltage | 220V DC |
Rated current | 13A |
Contact resistance | ≤3mΩ |
Insulation resistance | ≥2000 MΩ(normal) |
Withstand voltage | 50Hz AC 2000V for 1 min, no breakdown and flashover |
Number of contacts | 27 pin |
Male/Female | Plug-socket；socket-pin |
Service life | 750 |
Insertion and separate force | 1N～3N |
Protection level | IP65（up to IP67） |
Operation Temperature | -40℃～+125℃ |
Relative Humidity | ≤95%(at 40℃) |
Material | Shell-Al-alloy；Insulator-Engineering plastic； contacts-Cu alloy |
Flammability | DIN 5510 |
Surface treatment | Anodize |
Color | Army green |
Application | For electrical connection of railway, rolling stock, urban rail transit |
Package | Carton |
Packaging & Delivery
Packaging Details：Carton
Delivery Time：25 days
Sichuan Yonggui Technology Co., Ltd.
- Phone: +86 0816-2538645
- Business Type: Manufacturer
- Location: China
- Main Products: Explosion-proof connector,Rail connector
- Total Employees:More than 1000 people
- Year Established:2008
- Export Markets:
- Total Annual Revenue:
