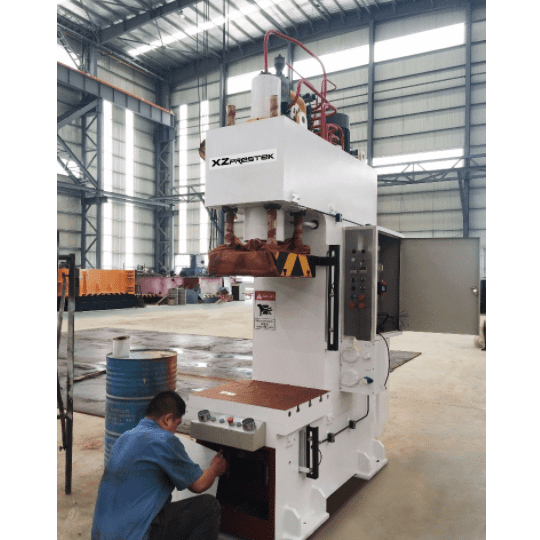

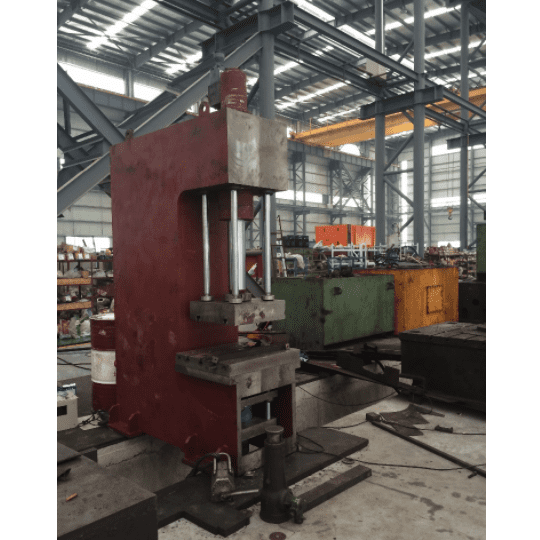

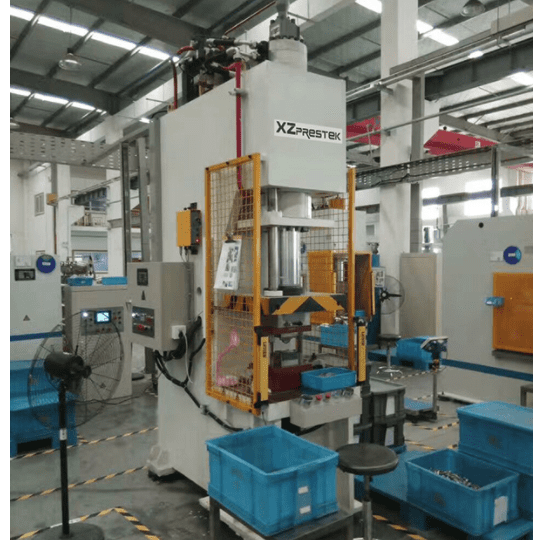

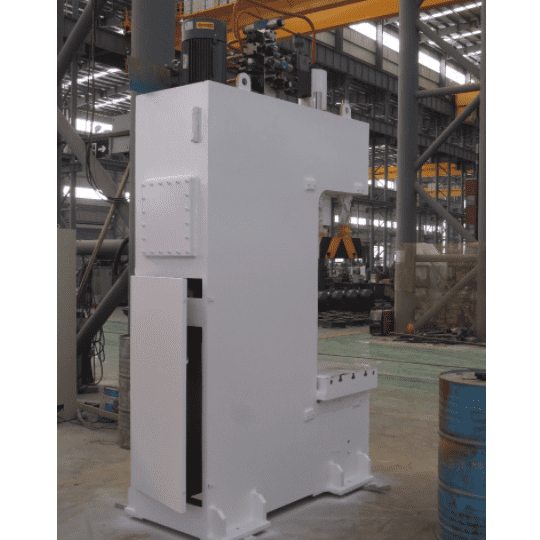

YD30 C Frame Hydraulic Press (40ton~250ton)

Sold By

EXW Price:

a Set of

US $260,000.00

1 - 9a Set of

US $10,000.00

10 + a Set of

< >

Quantity:

- + a Set of

Shipping:

From China

Shipping Cost:

US $-.-- / shipping cost needed to be confirmed by seller

Total Price:

US $260,000.00 (not including shipping cost)

Inquire Now

< >

Product Details
Company Profile

* Provide Customized Personalized Service

Item		Unit	YD30-40	YD30-63A	YD30-100A	YD30-160	YD30-200	YD30-250
Rated Force		KN	400	630	1000	1600	2000	2500
Slide Stroke		mm	400	500	700	700	700	800
Throat Depth		mm	320	360	450	450	450	450
Maximum Open Height		mm	700	1000	1100	1100	1100	1200
Slide Speed	Idle	mm/s	90	220	220	200	200	200
	Pressing	mm/s	8-20	8-20	8-20	6-16	6-16	6-16
	Return	mm	190	140	190	180	180	180
Bolster Size	L-R	mm	700	800	900	900	900	900
Bolster Size	F-B	mm	600	700	800	800	800	800
Slider Size	L-R	mm	500	500	600	600	600	600
Slider Size	F-B	mm	400	400	500	500	500	500
Main Motor Power		KG	7.5	7.5	11	11	22	22
Distance between Table and Floor		mm	750	750	800	900	900	900

Product Features:

* C Frame single column structure, with economical and practical features. Fast speed, high efficiency, suitable for pressing, press fitting, etc.

* Integrated hydraulic system adopts cartridge valve control, reduce the leakage points, ensure reliable operation, and long service of life. The electric control system adopts imported PLC, which can realize two kinds of technologies, fixed pressure and fixed pressure ,and adjustment ,manual, semiautomatic three kinds of operation modes .
