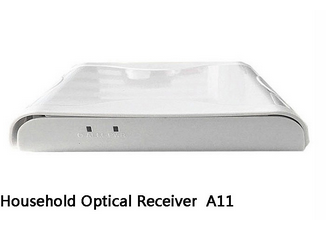

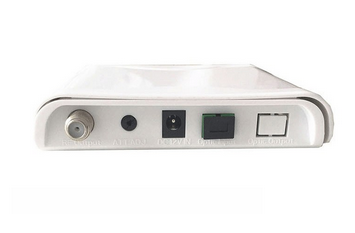

New 2017 best price plastic shell 1310 1550 optical receiver
Product Parameter
Optical property | ||
Optical wavelength(nm) | 1310/1550 optional by filter | |
Receiving optical power range(dBm) | -15~-5 | |
Recommend input power range(dBm) | -15~-8 | |
Optical return loss(dB) | ≥45 | |
Optical fiber link type | SC/APC | |
RF characteristics | ||
Working frequency(MHz) | 47~1000 | |
Flatness(dB) | ±1.5 | |
Output level(dBuV) | ≥72@-12dBm | |
Manual gain control range (dB) | 0~20±2 | |
Output return loss(dB) | ≥12 | |
Output impedance | 75 | |
Output terminal port quantity | 1 | |
Rf connector type | F-5(metric system) | |
Link performance | ||
CTB(dB) | ≥60@-10dBm | |
CSO(dB) | ≥60@-10dBm | |
CNR(dB) | ≥40@-10dBm | |
Test condition:60PAL-D channel input, the input optical power -10 DBM, at the condition of 5dB noise factor, 3-class EDFA transmitting 65km, OMI 3.5% | ||
Other parameter | ||
Power supply | Input voltage(V) | 110~240AC@50/60Hz |
Output voltage(V) | 12DC | |
Machine power consumption(W) | ≤3 | |
Working temperature range(°C) | 0~50 | |
Humidity | 0~90% without condensation | |
dimensions(mm) | 123x923x7 | |
Welcome to inquiry for more details!
Advantages
1.1310nm/1550nm double wavelength.
2.LED receiving optical power over-low alarm indication.
3.High performance index electronic control attenuation control electrical circuit.
4.High quality MMIC amplifier output.
5.Power source adopt external DC12V power adapter.
6. Using high-quality photoelectric conversion adapter, and low noise MMIC amplifier chip, the circuit design is excellent, excellent nonlinear distortion characteristics.
7. Easy maintenance, perfect craft, high performance price.
