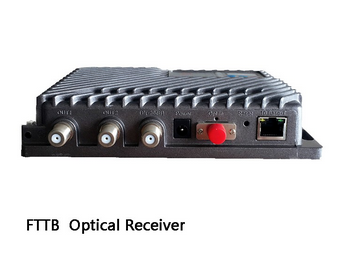

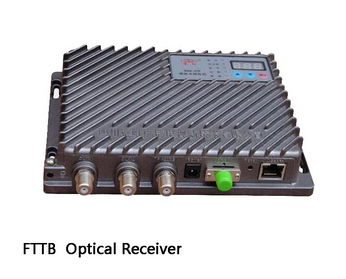

New 2017 best price low noise smart outdoor catv receiver
Product Parameter
Items | Technical parameters | |
Optical properties | light wavelengths(nm) | 1290~1600 |
receiving optical rang(dBm) | -9~+3 | |
light AGC control are(dBm) | -7~+3 | |
light reflection loss | ≥48 | |
Fiber optic link type | FC/APC or SC/APC | |
Radio frequency(RF)properties | frequency range(MHz) | 47~750/860/1000 |
In-band flatness(dB) | ±0.7 | |
nominal output level(dBuV) | ≥104(3dBslope) | |
Output level adjustment range(dB) | 0~15(1 dB plus or minus ) | |
Equalizing regulation range(dB) | 0~15(3 dB plus or minus ) | |
Radio frequency link performance properties | Noise factor(dB) | ≤5 |
Reflection loss(dB) | ≥16(47~550MHz); ≥14(550~750/862MHz) | |
CTB(dB) | ≥65 | |
CSO(dB) | ≥62 | |
C/N(dB) | ≥51 | |
Other parameters | Power supply voltage range(V/50hz) | AC220V turn to DC12V or AC60V turn to DC12V |
Machine power consumption(W) | ≤5 | |
Lightning resistance (KV) | >5(8/20us) | |
Working environment temperature(°C) | -10~+50 | |
Output cable joint type | Metric F head | |
Average failure-free time(h) | MTBF>40000 | |
Overall dimensions (mm) | 171x132x36 | |
Welcome to inquiry for more details!
Advantages
1.1310nm and 1550nm dual work windows;
2.Optional 750MHz or 1000MHz bandwidths;
3.LED optical power display;
4.Wide control range with optical AGC control functions(+3dBm~-7dBm);
5.The cermet high-speed pulse current discharge tube lightning arrestor at output ports ensures the optical receiver’s resistance to lightning strike;
6.RJ 45 network management interfaces in conformity with GB/T20030-2005 HFC network equipment management system specifications;
7.The external high-performance power adopter makes installation and debugging easier.
