Product Description
I.Products advantages:

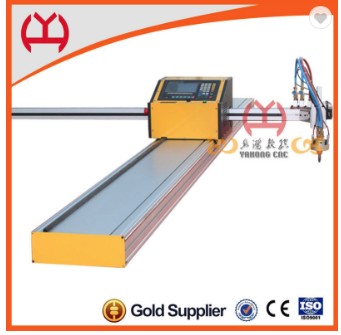

1. Portable cnc plasma metal cutting machine is an integrally compact mini structure and is an ideal updating and upgrading product for replacing handheld flame cutting equipment, handheld plasma cutting device, profiling cutting machine and semi-auto cutting trolley.
2. Operated easily and flexibly
3. Without any fixed site and with random moving.
4. It is applicable to inside/outside cutting.
5. Able to cut off various metal materials of any graphs.
6. Good finish.In general, There is no need to process surface further after cutting.
7. It is provided with advantages such as high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance and so on.
II.Unique functions:

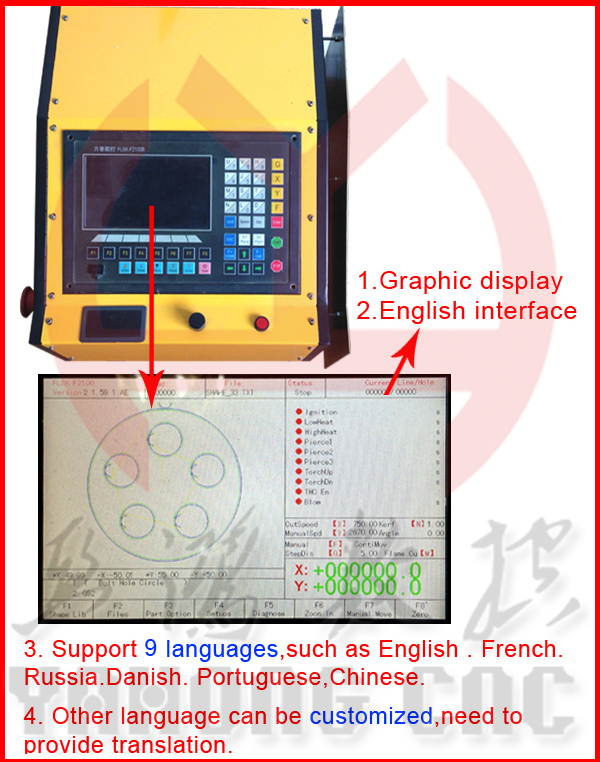

(1). graphic display function
(2). English interface and other 5 languages
(3). Excellent graph library ,48 graphic
(4). steel plate correction function
(5). Kerf can be automatically compensated
(6). Cutting can continue when power fails
(7). Continuous return can be done
(8). Positioning and cutting can be done randomly
(9). Off-line cutting can be done:
(10). Online upgrading function
III. Main Technical Performance Indexes of products:
2 | Cutting shape | any shapes |
3 | LCD Display Dimension | 7.0Inches |
4 | Effective Cutting Width (X axis) | 1500mm |
5 | Effective Cutting Length (Y axis) | 3000mm |
6 | Cross Beam Length | 2000mm |
7 | Longitudinal Rail Length | 3500mm |
8 | Cutting Speed | 0-4000mm per minute |
9 | Plasma Cutting Thickness | 2--20mm ( Depends on plasma power source capacity) |
10 | Flame Cutting Thickness | 6--200mm |
11 | Drive Mode | single-side |

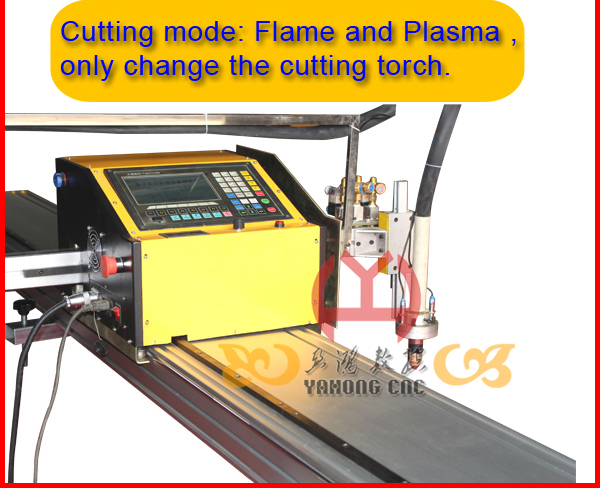

12 | Cutting Mode | flame and plasma |
13 | Ignition device | Auto ignition device |
14 | Height regulating device | Arc voltage height or Electric adjustable high |
15 | File transmission | USB transmission |
16 | Gas Pressure | Max. 0.1Mpa |
17 | Oxygen Pressure | Max.0.7Mpa |
18 | Cutting Gas | Acetylene/Propane |
19 | Plasma Power Source | optional |
20 | Plasma Air | Only pressed Air |
21 | Plasma Air Pressure | Max. 0.8Mpa |
22 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
23 | Control accuracy | ±0.01mm |
24 | Power Supply Voltage/Frequency | 220V/110V 50HZ / 60HZ |
25 | Rated Power Supply | 200W |
26 | Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
Products Application
Cnc plasma metal cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc..

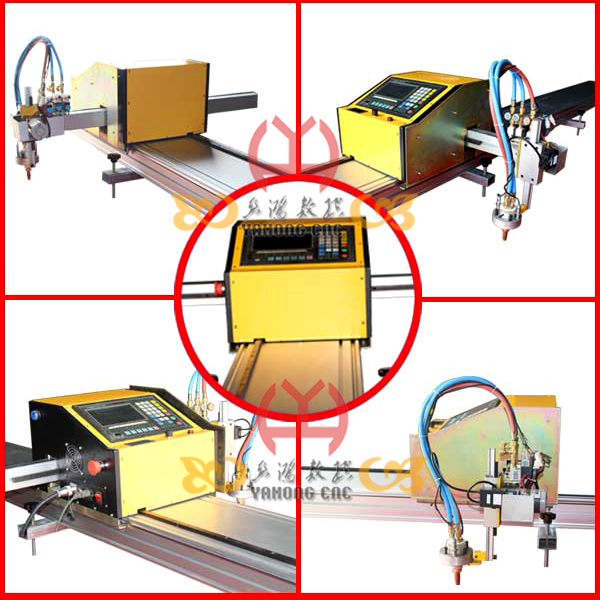

Photos:
Packaging & Shipping
Packing: lining--anti-static film package firstly, waterproof, moistureproof.
Intermediate--around the perimeter of the box, there is bubble.
Outer--export standard packing, fumigation-free plywood.
Package size: 3185mm*385mm*220mm 480mm*480mm*415mm
weight: 140KG
Package photos:
Certificates:
