Machine Industry Compressor Pump Energy Vibration Shock Control JGX-0648D-45A Stainless Steel Compact Wire Rope Isolator

Product Description

JGX-0648D-45A wire rope isolator is another kind type isolators which are included in the family JGX-0648 series. The stainless steel cables and retaining bars of the JGX-0648D-45A provides amazing vibration isolation any time in use.

JGX-0648D-45A is the new designed 8 loops 6.4mm diameter wire rope isolators with max static load of 45kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

The JGX-0648D-45A wire rope isolators are used widely in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

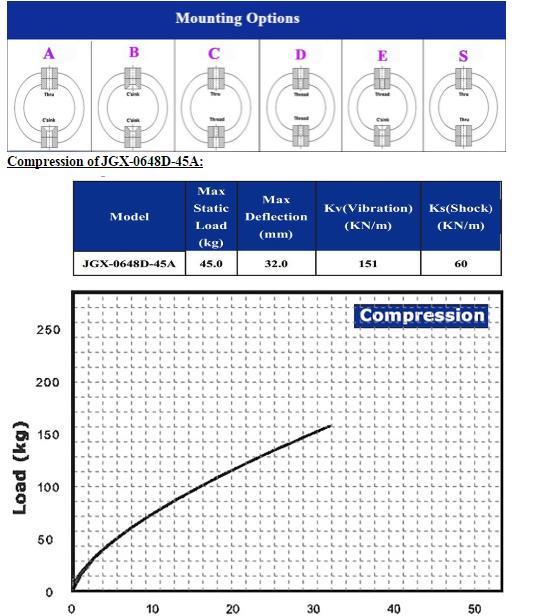

Technical Parameter

Mounting Bars

* Material of Mounting Bars *

   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

No creep or ageing.

High internal damping.

Very wide temperature range.

Wide variety of possible fittings.

Rapid and economical prototyping.

Extremely rugged construction and long lifespan.

Excellent combined shock and vibration isolation.

Not affected by chemical agents, seawater, ozone, UV rays,...
