MODEL NO.
MU572C
Application:

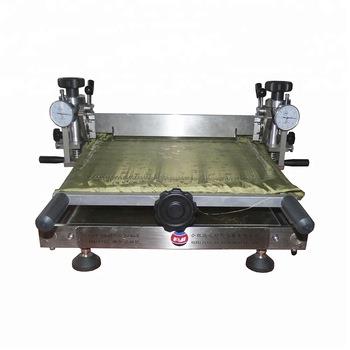

Professional lab coating cheap Model MU572C is a coating machine for lab use, operated by hand with the coating area of 300×280 mm, which is used in lab coating technique experiment. Its main performance and specification as well as the comparison of the other coating machine, see the following table.
Features:
l Super accuracy of motion up to 0.01mm
l Stainless steel of structure,
l Core components from Germany
l Compatible with Mathis LTE-S Labcoater
l Gradient of blade can be adjustable from 200 up to 1150
l Equipped ingenious fixture along with blade to block pigment to flow out
l Easy hand operated
l Easy to remove blade and re-fix it
Key Specification:
Coating area | 285*300mm |
Pin frame | 440*365mm |
Coating thickness | 0-5mm, resolution 0.01mm |
Coating front angle | 200~1150 |
Blade Spec. | 300*60mm |
Blade Type | 450/900 blade, arc blade, comma blade, Round blade, square blade, etc |
Roller | Φ40*300 |
Weight | 35kg |
