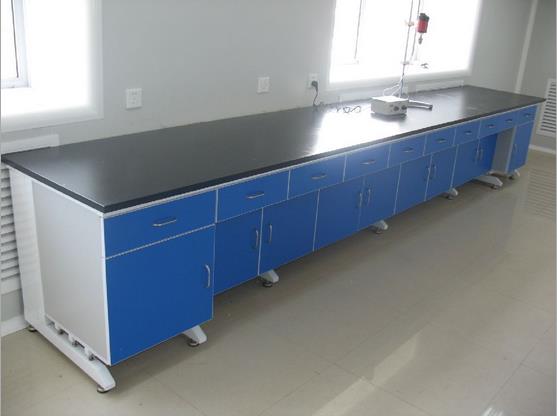

Laboratory fully toughened plate table, central experimental platform, experimental platform

Processing custom: Yes

Power output: 0 (W)

Quality index: 100

Heating power: 1000 (W)

Capacity: 100000

Signal generator: 1

Energy converter: 100

In the slot size: 100 (mm)

Net weight: 100 (kg)

Model: 011

Use: laboratory test bed

Specification: 3900*750*800

(1) technical specification of the platform table

1. material: the table adopts 12.7mm thick core physical and chemical board, edge thickening is 25.4mm, corrosion resistance, waterproof, high temperature wear resistance, resistance to attack, no deformation, no poison, easy to clean, and has good load bearing performance.

2. processing technology: the outside of the panel is treated with small circular arc, the bottom of the lower edge of the mesa and the water stop ditch to prevent the water from dropping into the cabinet. 3., installation: the high quality special adhesive is used for the panel joint, the joint gap is no more than 2mm, and it keeps flat. The adjacent platform is on the same level.

(two) technical description of the counter body of a test bed

1. cabinet body material: the cabinet body uses the 18mm thick E1 grade particleboard, and the high quality melamine board is attached to the outside.

2.C type steel frame: 60 x 40 mm pipe, 1.2mm. pipe wall thickness produced by EPOXY spraying treatment with anti acid and high temperature, the connecting rod produced by EPOXY spraying with 30 mm * 30 mm * 1.2 mm pipe, connecting wing produced by galvanized 2mm steel, a height adjusting foot using M10mm screws (electroplating processing) to adjust the height more than 10mm, the overall structure is supported, which can support 250kg deformation table.

3. coating thickness: the surface of the steel plates of all the test beds is evenly sprayed with epoxy powder, and the spraying thickness is no less than 50 M (5%), and the corrosion resistance is strong.

4. back plate: to facilitate the installation and maintenance of the pipeline, the back plate of the cabinet has the design of the maintenance and opening, and the upper plate is a movable backboard.

5. cabinet drawer: PVC hidden handle. Each drawer has a quiet limited function. The bearing is 35kg above. The 18mm thick E1 grade particleboard is covered with high quality melamine plate. The two sides adopt three section guide rail, which is easy to expand and store, or to store goods.

6. cabinet door panel: 18mm thick E1 grade particleboard with high quality FireBoard.

The 7. hinge: using DTC card, open and close more than 110 radian degree, beautiful appearance, no noise when closing, number more than eighty thousand times, anti rust, corrosion resistance, reached the standard of International Hardware industry.

8. Guide: the DTC card limit multi section guide rail, bearing the weight of more than 25kg, up to 50 thousand times more destructive test. To meet the international hardware industry standards.

9. handle: PVC "one" type hand, no burr, feel round, weak acid and alkali resistance.

(three) technical specification of reagents

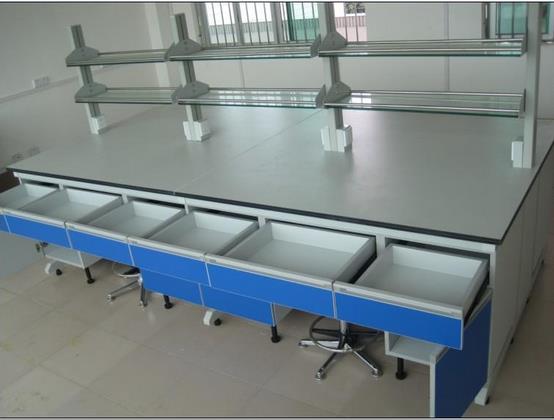

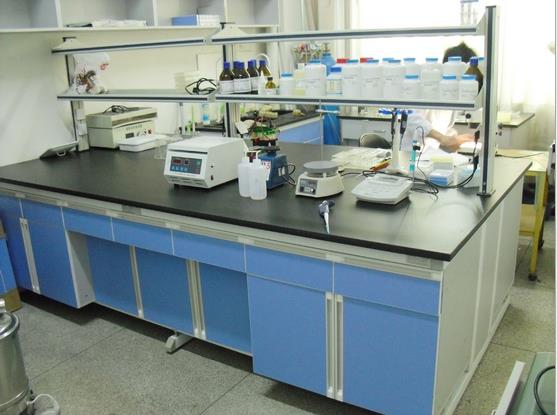

1. reagent rack support: adopt 100 * 40MM steel tube, the wall thickness 1.2mm is processed by the numerical control equipment, in the column structure, it can take the line and set the adjustment hole, the laminate can be adjusted up and down, the surface is processed by EPOXY RESIN powder electrostatic spraying, has the acid and alkali resistance characteristic.

2. reagents frame: laminate is 10mm thick tempered glass, each laminate can be freely adjusted up and down, the laminates are set up and the front edge has stainless steel bar.

3. parts: electric installation, can stand reagent gas, water cock and other accessories.

4. socket: the 220V 10000 socket is installed on both sides of the column or both sides of the line groove, and all the sockets are in accordance with the CCC standard.

(four) technical specification for water and electrical fittings in experimental platform

1. eye washer: use the Taiwan brand. High brightness epoxy coating, corrosion resistance, heat resistance and ultraviolet radiation. Spray head: soft rubber, water light and slow pressure treatment is bubbly water column, to prevent the injury of the eyes. Metal ring buckle: it has the function of locking water, which is convenient to use. Water control valve: thick copper, high density PP hand, its closed door can be closed automatically.

2., the leading part of the experiment is to use the laboratory specific test tap, copper, the surface layer is treated with acid paint, and prevent acid and alkali and rust prevention. The valve is made of precision ceramics and the outlet is PVC material.

3. water trough: the high density black pure PP material is formed with the thickness of more than 5mm, with elastic, acid alkali resistance, heat resistance and organic solvent.

4.PP dripping frame: the frame and the dripping rod are PP material, and the bottom of the chassis is provided with a drainage hole.
