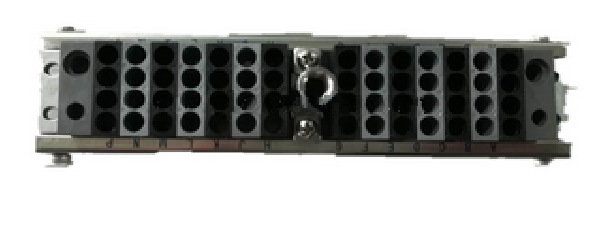

Specification:
Plug: YGC-JL20-56AT
Socket: YGC-JL20-56AZ
Product parameters:
Rated voltage | 220V DC |
Rated current | 10A |
Contact resistance | ≤3mΩ |
Insulation resistance | ≥5000 MΩ(Normal) |
Withstand voltage | 50Hz AC 3000V for 1min no breakdown and flashover |
Number of contacts | 56 pins(Mixed allowed) |
Male/Female | Plug and socket |
Service life | 750 |
Insertion and separate force | 0.5N~1.5N |
Protection level | IP50 |
Operation Temperature | -40℃~+125℃ |
Relative Humidity | ≤95% (at 40℃) |
Material | polycarbonate |
Flammability | DIN 5510 |
Surface treatment | |
Color | Grey |
Application | For electrical connection of railway, rolling stock, urban rail transit |
Package | Carton |
