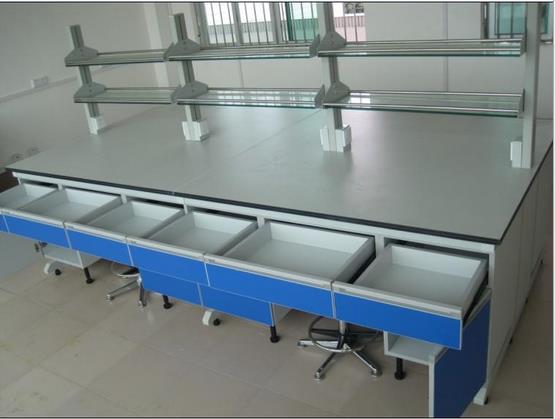

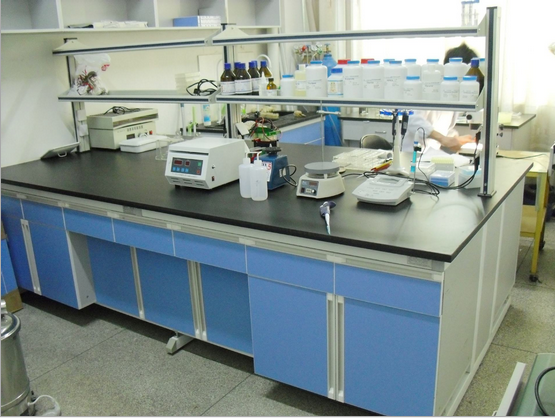

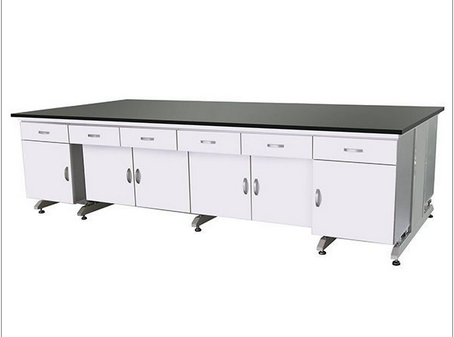

Instrument and equipment for anti - static and anticorrosive edge test bench

Material: steel wood

Shape size: 5000*750*800 (mm)

Scope of application: Laboratory

Workbench type: Antistatic worktable

Sample or spot: spot

Standard parts: Yes

Stock: Yes

Whether or not wholesale: Yes

(1) product technical requirements:

Size error: length and width and height is less than or equal to 3mm; the table diagonal or diagonal frame smaller than 1000mm and the adjacent edges allow verticality error value is less than or equal to 3mm; the table diagonal or diagonal frame >1000mm, adjacent edges allow verticality error value is less than or equal to 4mm.

(two) technological requirements:

Table 2.1 part: the special 12.7mm Laboratory of solid physiochemical board made around bordered to 25.4mm. It has corrosion resistance, strong resistance to acid and alkali and organic solvents. It has toughness, impact resistance, high temperature resistance, 200 degrees, waterproof, anti bacterial growth, no toxic substances, no radiation, health, environmental protection and static electricity.

2.2 cabinets and drawer door panels: the whole 1.2mm high-quality SUS304 stainless steel plate is made by cutting, punching, bending and gas shielded welding of special machine tools. The surface is processed by wire drawing process. It has strong acid and alkali resistance, corrosion resistance, impact resistance and toughness. The steel surface is smooth, with obvious welding scar, bubbling, depression, indentation, scratches, cracks, pitting, chipping and edge defects are not allowed. The hole position is located by the mold. Cutting, drilling and chamfering should be burr.

2.3 the installation of all kinds of fittings should be strict, smooth, upright, firm, and no stubble or loosening. The metal parts should be treated with rust removing and anticorrosion.

2.4 door and frame, doors, doors and drawers, 1-3mm on the gap interval; along the elastic medium, along the length and plate length error is less than 0.5mm; the wire through hole size error is less than or equal to 0.5mm; the drawer out drop less than 20mm, the swing is less than or equal to 10mm; surface chamfer uniform, chamfer radius is less than or equal to 2mm; the level of requirements, solid.

2.5 cleaning: there is no glue on the surface of the workpiece, especially the requirements of the edge and the surface are smooth and clean.

2.6 hinges: hinges are made from Hongkong Cherry Blossom brand antiseptic alloy materials to meet the international hardware standards.

2.7 three section guide: adopt King Power brand suspension ball rail, it can withstand 30 kilograms of pressure, mold molding, telescopic freely, you can stop at any space.

2.8 adjustable foot: the use of ABS special injection adjustable foot, stainless steel metal screw, high adjustable, adjusting range of 30-50mm, anti slip and shock absorption.

2.9 backboard: in order to match the installation and daily maintenance of water, electricity and gas, the backplane of the lower cabinet is designed as a detachable backplane.
