Increased security “e” Connector -20 pin
Application:
Apply to control connection of electrical equipment of petroleum, industry and shipping etc.
Use environment and main technical characteristic:
Environment temperature: -55℃~+60℃
Relative humidity: 90%~95%
Rated voltage: 60V
Rated current: 6A
Insulation resistance: ≥2000MΩ
Withstand voltage: 1000V AC/DC
Contact resistance: ≤3mΩ
Protection degree: IP67
Shell: Al-alloy Ni-plated
Contacts: Cu-alloy, Au-plated
Duration: 1000 cycles
Explosion proof degree: Exe II T4Gc
Explosion proof areas: Zone 2
Structure characteristic:
Crimping terminal for contacts and wire.
Screw coupling for connectors. Contacts in inserts could be withdrawn by removal tool.

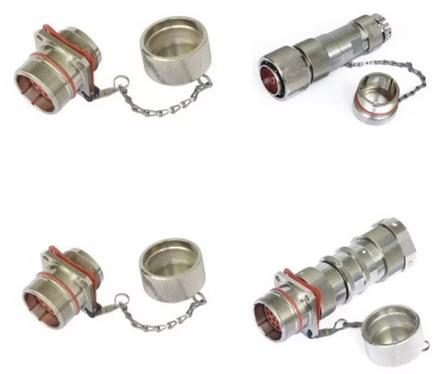

Plug and receptacle all are with protection cover.
Plug: YGC-Ex4P20P
Mobile Receptacle: YGC-Ex4S20R
Receptacle for panel mounting: YGC-Ex4S20R-A
