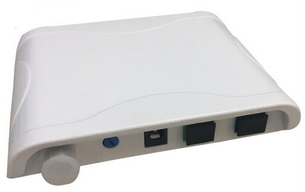

FTTB CATV AGC 2 RF mini optical node and receiver
Product Parameter
Optical property | ||
Optical wavelength(nm) | 1310/1550 optional by filter | |
Receiving optical power range(dBm) | -15~-5 | |
Recommend input power range(dBm) | -15~-8 | |
Optical return loss(dB) | ≥45 | |
Optical fiber link type | SC/APC | |
RF characteristics | ||
Working frequency(MHz) | 47~1000 | |
Flatness(dB) | ±1.5 | |
Output level(dBuV) | ≥72@-12dBm | |
Manual gain control range (dB) | 0~20±2 | |
Output return loss(dB) | ≥12 | |
Output impedance | 75 | |
Output terminal port quantity | 1 | |
Rf connector type | F-5(metric system) | |
Link performance | ||
CTB(dB) | ≥60@-10dBm | |
CSO(dB) | ≥60@-10dBm | |
CNR(dB) | ≥40@-10dBm | |
Test condition:60PAL-D channel input, the input optical power -10 DBM, at the condition of 5dB noise factor, 3-class EDFA transmitting 65km, OMI 3.5% | ||
Other parameter | ||
Power supply | Input voltage(V) | 110~240AC@50/60Hz |
Output voltage(V) | 12DC | |
Machine power consumption(W) | ≤3 | |
Working temperature range(°C) | 0~50 | |
Humidity | 0~90% without condensation | |
dimensions(mm) | 123x923x7 | |
Welcome to inquiry for more details!
Advantages
1.1310nm/1550nm double wavelength.
2.LED receiving optical power over-low alarm indication.
3.High performance index electronic control attenuation control electrical circuit.
4.High quality MMIC amplifier output.
5.Power source adopt external DC12V power adapter.
6. Using high-quality photoelectric conversion adapter, and low noise MMIC amplifier chip, the circuit design is excellent, excellent nonlinear distortion characteristics.
7. Easy maintenance, perfect craft, high performance price.

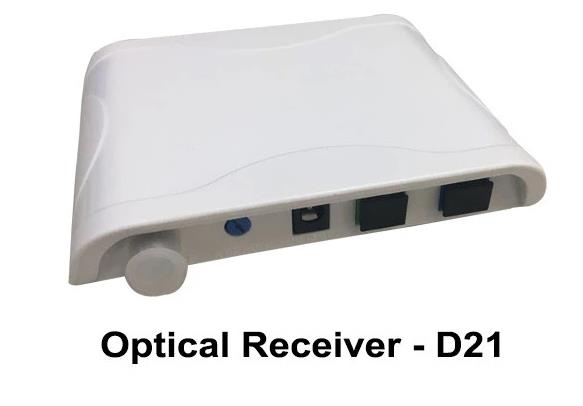

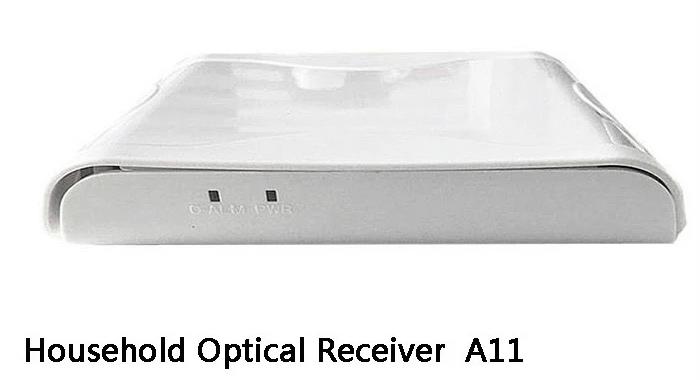

Product Show

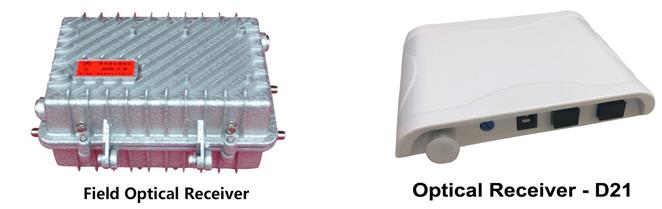

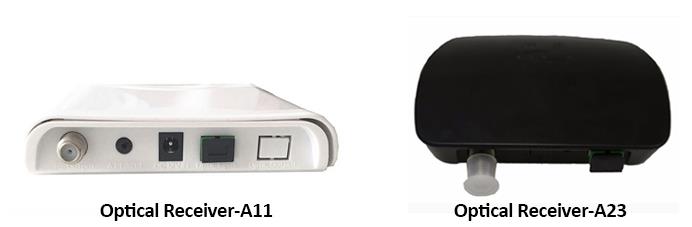

Hot Sale Products-1
Testing Equipment
Company Information
Sichuan BIHONG Broadcast & TV technology Co., Ltd. Was founded in 1992,
Located in No.36 three Zhongshan Road, Guanghan City, Sichuan Province.The registered capital of 50 million 30 thousand RMB, in 2015 total sales of nearly 200 million RMB, 130 employees, through the ISO9001-2008 international quality management system certification. 24 years of planning, design and construction management focus on radio and television information broadband network system, research and development, manufacturing and sales as well as the cable TV network technology research and equipment, products exported to Vietnam, Thailand and other Southeast Asian and South American countries, partners around the world.
The company has a series of independent intellectual property rights of technology and products, has 28 utility model patents, 2 appearance design patents, computer software, copyright 13, work registration certificate 3.
24 years focus on business, your wise selection!
