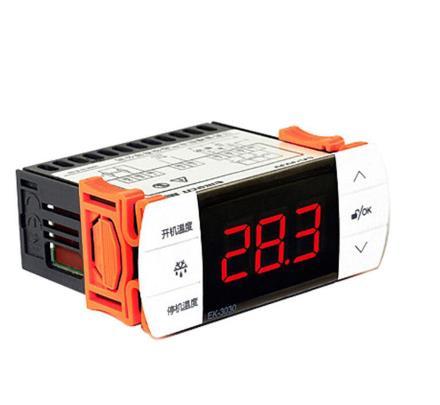

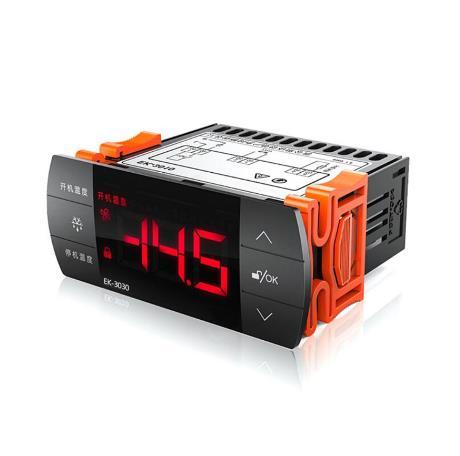

Cold room touch screen temperature controller EK-3030

Product Parameters:

Product Description:

Refrigeration Parts Touch Screen Digital Temperature Controller EK-3030

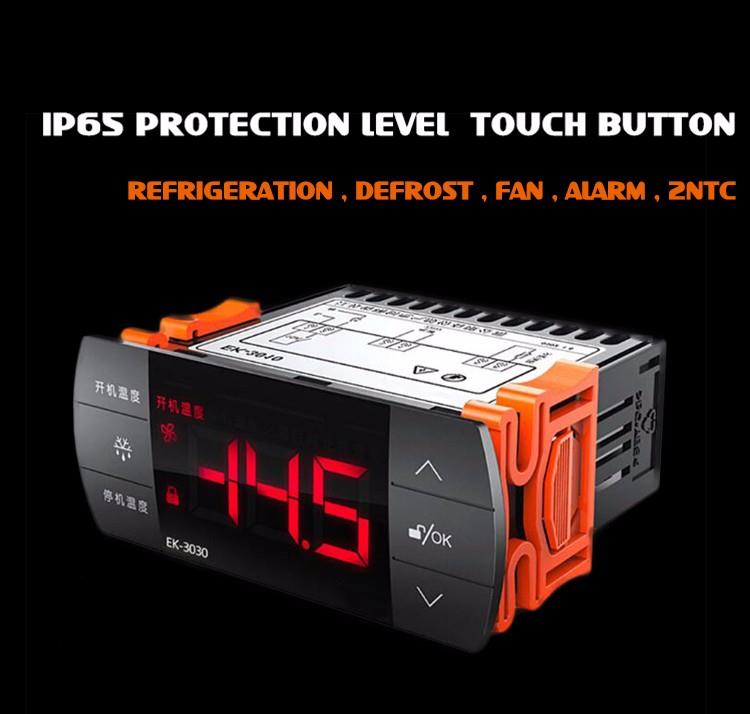

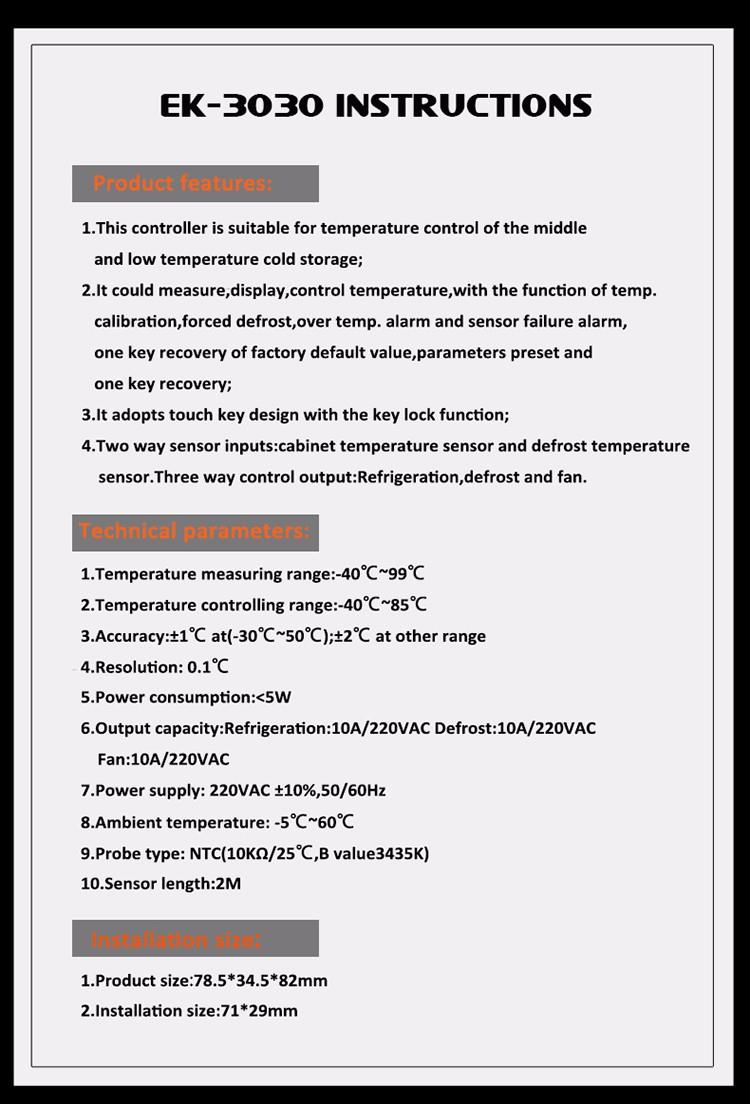

Features and Functions:

1. This controller is suitable for temperature control of the middle and low temperature cold storage;

2. It could measure, display, control temperature, with the function of calibration, forced defrost, over alarm and sensor failure alarm, one key recovery of factory default value, parameters preset and one key recovery;

3. It adopts touch key design with the key lock function;

4. Two way sensor inputs: cabinet temperature sensor and defrost temperature sensor. Three way control output: refrigeration, defrost and fan.

Technical Parameters:

1. Temperature measuring range: -40℃~99℃

2. Temperature controlling range: -40℃~85℃

3. Accuracy: ±1℃ at (-30℃~50℃); ±2℃ at other range

4. Resolution: 0.1℃

5. Power consumption: <5W

6. Output capacity:

   Refrigeration: 10A/220VAC

   Defrost:10A/220VAC

   Fan:10A/220VAC

7. Power supply: 220VAC ±10%,50/60Hz

8. Ambient temperature: -5℃~60℃

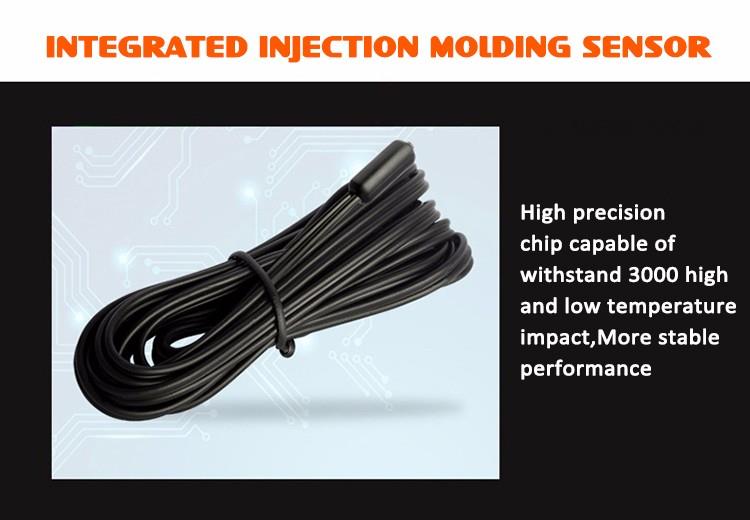

9. Probe type: NTC (10KΩ/25℃, B value 3435K)

10. Sensor length: 2M

Detailed Images:

Contact Information:

Company name: Xuzhou Sanhe Automatic Control Equipment Co., Ltd.

Company address: No. 18, Minyuan Road, Minying Industrial Park, Tongshan Economic Development Zone, Xuzhou, Jiangsu, China

Contact: Arisa Wang

Telephone number: +86-15262054674/+86-516-80266755

E-mail: arisa@jindian2008.com

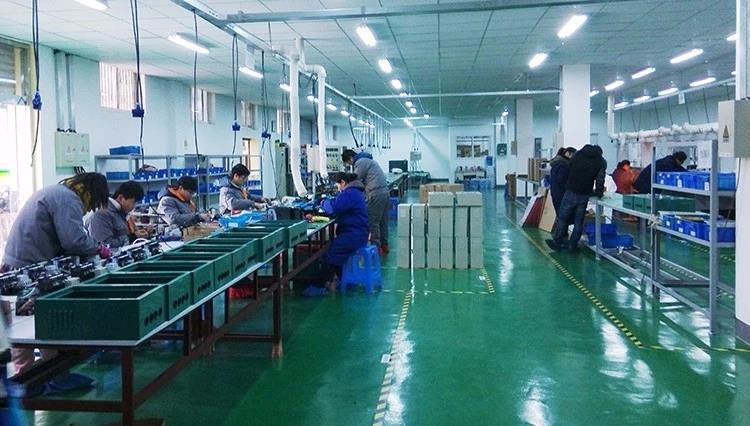

About Us:

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD, founded in April 2005, it is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on.

Highlights:

1. This product is a general temperature controller;

2. Refrigeration, transfinite alarm temperature, defrost, and other functions;

3. Compressor protection delay time is adjustable;

4. Suitable for freezers, cold storage, refrigerated trucks and other refrigeration industry.

Each item in one small box, and every 100 pieces in one carton.
