Product Description

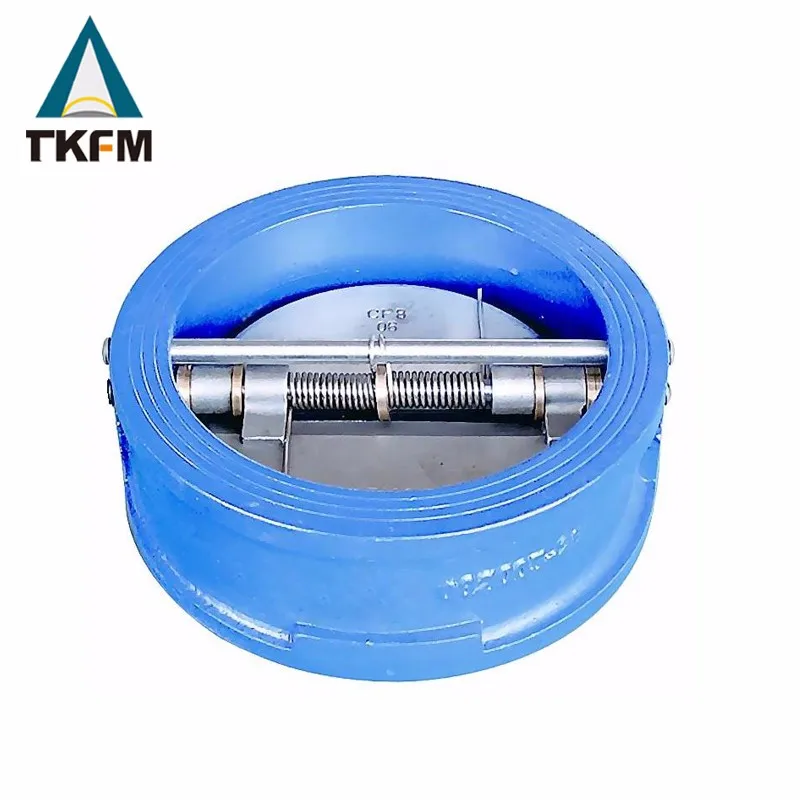

Chinese supplier TKFM normally open butter fly cf8 wafer check valve price list
Application:
Wafer type butterfly check valve adopts an advanced foreign structure design and is an energy-saving product conforming to the world standard. It is good at the check performance, safe, reliable, small in the flowing resistance and mainly suitable for petroleum, chemical, food, pharmacy. light & textile, paper-making, water supply and drainage, refinery and energy etc. systems, used as an one-way valve.
Main parts material
Body | Valve plate | Shaft | Rubber block | Spring | ||||
material name | code | material name | 1 | Material name | Material name | code | ℃ | Material name |
Cast iron | Z | Black cast iron ball plating | 2 | Stainless steel | EPDM | X3 | -46 ~ 121 | Stianlesss steel |
Ductile iron | Q | Aluminum bronze | 3 | Neoprene | X4 | -29 ~ 99 | ||
Carbon steel | C | ZG1Cr1BNi9Ti Stainless steel | 4 | NBR | X5 | -23 ~ 82 | ||
Stainless steel | P | CF8M stainless steel | 5 | Viton | X7 | -23 ~ 150 | ||
CF8 stainless steel | 6 | |||||||
Performance Specification
DN | 50(2'') ~ 700(28'') | 50(2'') ~450(18'') | mm(inch) | |
PN | 1.0 | 1.6 | Mpa | |
Test pressure | Case | 1.5 | 2.4 | Mpa |
Seal | 1.1 | 1.76 | Mpa | |
Suitable temperature | -15℃ ~ 150℃ | |||
Suitable media | water, sewage, air, steam, food, medicines, oils, acids | |||

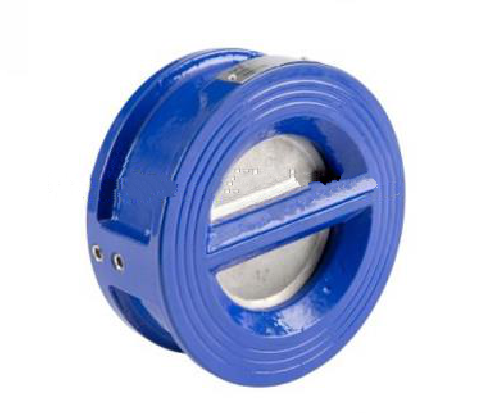

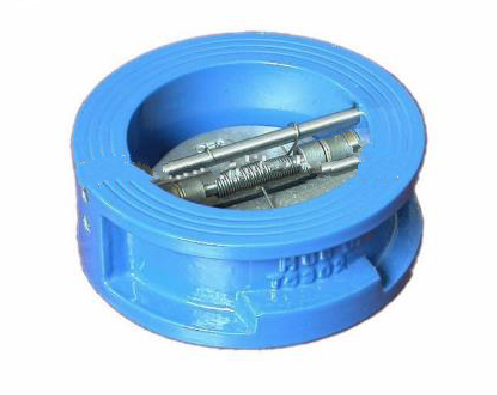

Products Show
Our Service

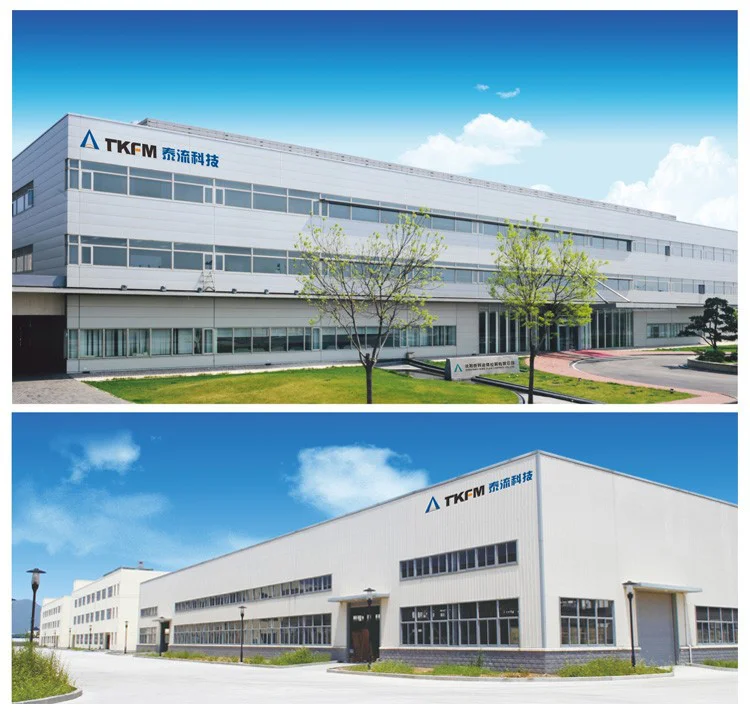

Our Company
Shenyang Taike Fluid Control Co. Ltd is a large worldwide company integrating valve production and development, completed mechanical equipment design, manufacture, installation, sales and service and located in the beautiful exporting process area. Taike full-welded ball valve meets the demand of the customers with its high quality and quick supply capacity.Taike valve launches its main product of fully welded ball valve with international advanced producing process and technique and international quality assurance and control procedure and advanced producing and operationmanagement. Our valve products are widely applied in countries and regions like. Europe, Middle East, Southeast Asia and china etc.Main products of fully welded ball valves, underground fully welded ball valves,relief ball valves and natural gas ball valves with diameter of DN15-DN1200 and operating pressure of 1.0MPa~6.4MPa and operating temperature of-196Celsius~550Celsius are available currently. Materials: carbon steel, alloy steel,heat resistant steel, stainless steel; operational methods: manual, with gear, electrical.hydraulic and automatic etc.
Main products are comply with relevant technical standards in different regions and countries, such as, ANSI, API, EN, BS,DIN, ASME and ISO etc, which are applied in various industries of petroleum,chemical industry natural gas,thermal, ship industry, electricity, pharmacy, food , military and construction engineering etc.
Packing & Delivery
Shenyang Taike Fluid Control Co., Ltd.
- Phone: +86 24-24697577
- Business Type: Manufacturer
- Location: China
- Main Products: valve,The regulator,Butterfly valve,Fully welded ball valve,ball valve
- Total Employees:100-500 people
- Year Established:2010
- Export Markets:Asia,Europe
- Total Annual Revenue:
