China supplier power mixer amplifier
Product Parameter
parameter project | BHA1550H-T-30 | BHA1550H-T-32 | BHA1550H-T-34 | BHA1550H-T-36 | BHA1550H-T-38 | BHA1550H-T-40 | BHA1550H-T-42 |
Optical wavelength(nm) | 1535~1565 | ||||||
Input optical power(dBm) | -6~+10(Recommend -3~+10) | ||||||
output optical power stability (dB) | <±0.2 | ||||||
Optical Reflection loss(dB) | ≥45 | ||||||
Fiber Connector | FC/APC,SC/APC,LC/APC | ||||||
Max output port | SC/APC: ≤64 ;LC/APC: ≤128 | ||||||
Noise Figure(dB) | <5.0(0dBm Optical input) | ||||||
Network Interface | RJ45(SNMP),RS232 or RS485 | ||||||
Power Consumption(W) | ≤75 | ||||||
Working Pressure(V) | 220VAC(90~265),-48DCV | ||||||
Working Temperature (℃) | -10~55 | ||||||
Storage Temperature(℃) | -20~+85 | ||||||
Size(mm) | 500(D)×482(W)×88(H) | ||||||
N.W(Kg) | 8 | ||||||
WDM | Upon request(With or without) | ||||||
OLT IN Connector | FC/APC,SC/APC,FC/PC,SC/PC | ||||||
1310/1490 loss of wavelength pass(dB) | ≤0.8 | ||||||
15501310/1490 Optical Isolation(dB) | ≥40 | ||||||
Advantages
1.Adopt imported Ortel. JDSU high linear DFB laser module, fully guarantee excellent link performance.
2.High-performance RF predistortion circuit design, high standards in CNR value, still can have perfect CTB. CSO performance value
3.Improve the stable reliable optical power output circuit and laser heating refrigeration stability control circuit, ensure the best performance of the machine and laser work stably for a long life
4.Using high performance microprocessor with laser monitoring, digital display the fault warning, network management and other functions
5.Provide standard network management interface RJ45, in line with the GB/T20030-2005 fiber coaxial hybrid network equipment management system specification
6.The 19 "1 u standard case, quality and efficient insertion type hot backup double switching power supply, can work in 110 ~ 264 v mains

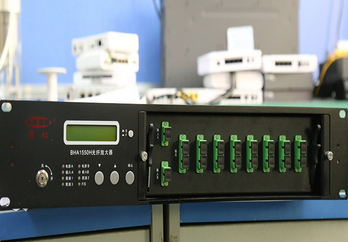

Product Show

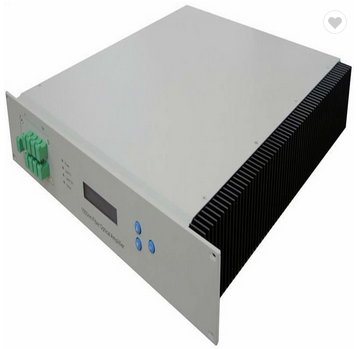

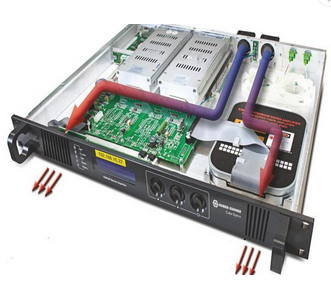

Hot Sale Products-1
Testing Equipment
Company Information
Sichuan BIHONG Broadcast & TV technology Co., Ltd. Was founded in 1992,
Located in No.36 three Zhongshan Road, Guanghan City, Sichuan Province.The registered capital of 50 million 30 thousand RMB, in 2015 total sales of nearly 200 million RMB, 130 employees, through the ISO9001-2008 international quality management system certification. 24 years of planning, design and construction management focus on radio and television information broadband network system, research and development, manufacturing and sales as well as the cable TV network technology research and equipment, products exported to Vietnam, Thailand and other Southeast Asian and South American countries, partners around the world.
The company has a series of independent intellectual property rights of technology and products, has 28 utility model patents, 2 appearance design patents, computer software, copyright 13, work registration certificate 3.
24 years focus on business, your wise selection!
