Best price hot sale indoor catv 1550 optical node
Product Parameter
Optical Features | ||
Optical Working Wavelength(nm) | 1310/1550 optional by filter | |
Receiving Optical Range(dBm) | -18~0 | |
Recommend Input Optical Power Range(dBm) | -15~-8 | |
AGC Control Range(dBm) | -15~-5 | |
AGC Control Precision(dB) | ±1 | |
Optical Reflection Loss(dB) | ≥45 | |
Fiber Connector | SC/APC | |
RF Features | ||
Working Frequency(MHz) | 47~1000 | |
Flatness(dB) | ±1.0 | |
Output Level Frequency(dBuV) | ≥72@AGC control Range-15dBm~-5 dBm | |
Output Reflection Loss(dB) | ≥16(47MHz~1000MHz) | |
Output impedence(Ω) | 75 | |
Output Port Q’ty | 1 | |
RF Connector | F-5(Imperial or Metric) | |
Link Features | ||
CTB(dB) | ≥65@-10dBm | |
CSO(dB) | ≥65@-10dBm | |
CNR(dB) | ≥43@-10dBm | |
Testing Conditions:60 channels(PAL-D),input signal -10dBm,when NF is 5dB under Level 3 EDFA, transmission 65Km,OMI 3.5% | ||
MER | ≥27.5dB@-18dBm | |
BRE | ≤1.0E-9@-18dBm | |
Power | Input Pressure(V) | 110-240 AC@50/60Hz |
Output Pressure(V) | 5 DC | |
Power Consumption(W) | ≤1.5 | |
Working Temperature (℃) | -20~50 | |
Storage Temperature(℃) | -35~70 | |
Humidity Range | 0 ~ 90% No Condensation | |
Size(mm) | 99×69×24 | |
Welcome to inquiry for more details!
Advantages
1. Plastic shell, design delicate.
2. Using high-quality photoelectric conversion adapter, and low noise MMIC amplifier chip, the circuit design is excellent, excellent nonlinear distortion characteristics.
3. Easy maintenance, perfect craft, high performance price.
4. 1310nm and 1550nm dual work windows;.
5. Easy maintenance, perfect craft, high performance price.

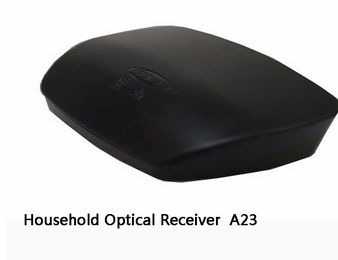

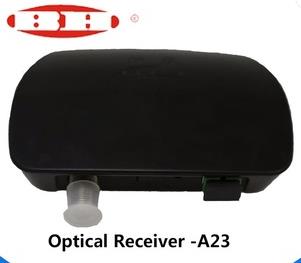

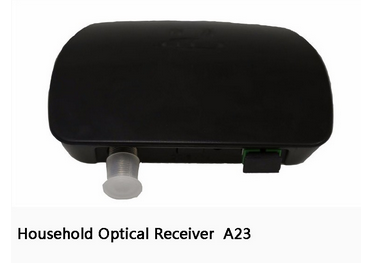

Product Show
Hot Sale Products-1
Testing Equipment
Company Information
Sichuan BIHONG Broadcast & TV technology Co., Ltd. Was founded in 1992,
Located in No.36 three Zhongshan Road, Guanghan City, Sichuan Province.The registered capital of 50 million 30 thousand RMB, in 2015 total sales of nearly 200 million RMB, 130 employees, through the ISO9001-2008 international quality management system certification. 24 years of planning, design and construction management focus on radio and television information broadband network system, research and development, manufacturing and sales as well as the cable TV network technology research and equipment, products exported to Vietnam, Thailand and other Southeast Asian and South American countries, partners around the world.
The company has a series of independent intellectual property rights of technology and products, has 28 utility model patents, 2 appearance design patents, computer software, copyright 13, work registration certificate 3.
24 years focus on business, your wise selection!
