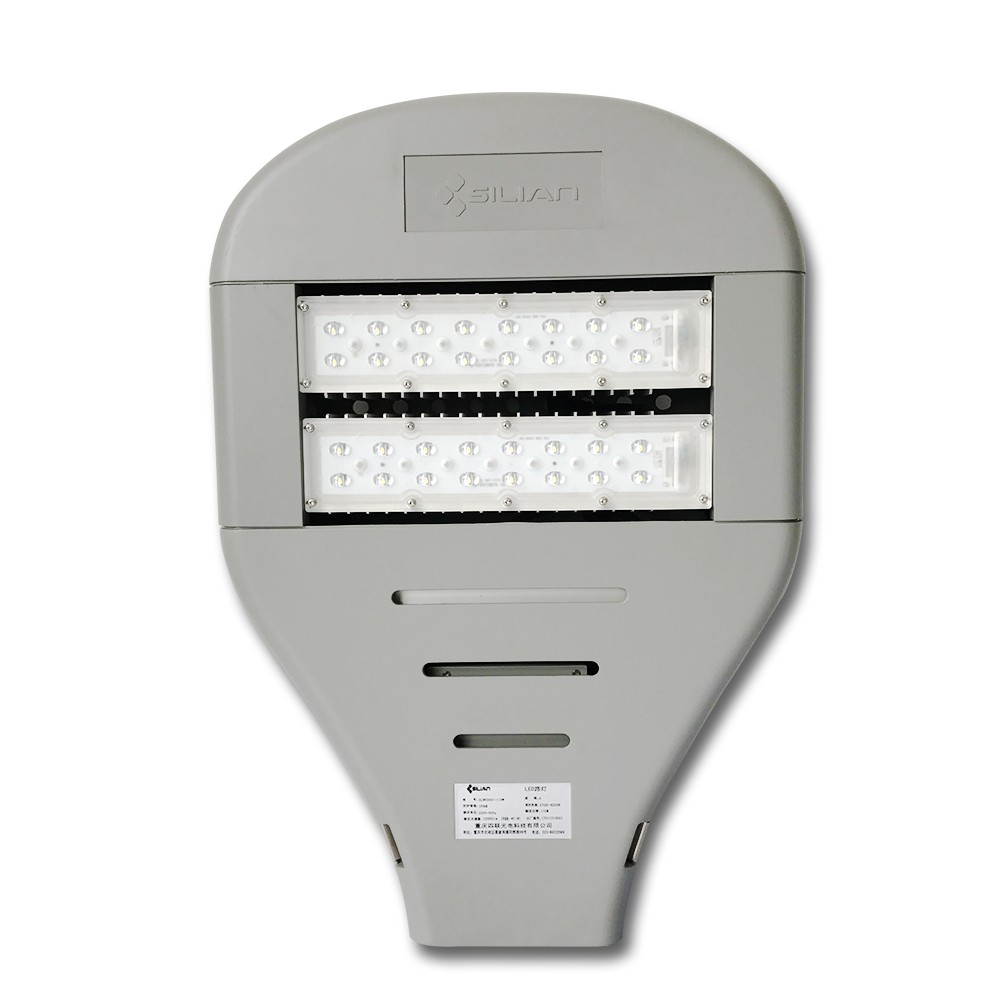

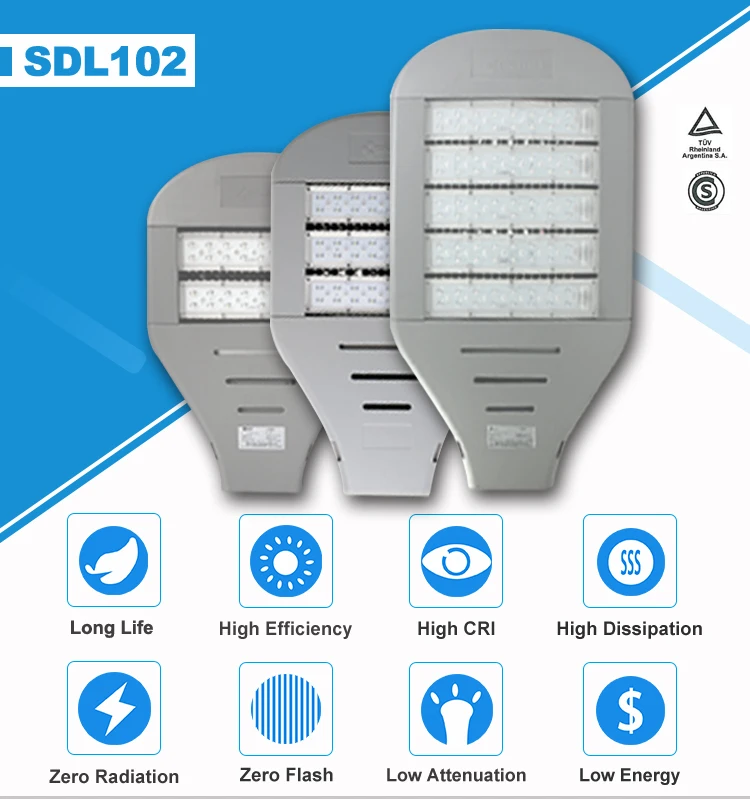

70/105/140/210W IP66 130lm/w LED Street Light

• Light Source:

• LED

• Item Type:

• Street Lights

• LED Light Source:

• SMD

• Input Voltage(V):

• AC90-305V/DC10-28V

• Lamp Power(W):

• 70

• Lamp Luminous Flux(lm):

• 9100-27300

• Lamp Luminous Efficiency(lm/w):

• 130

• CRI (Ra>):

• 70

• Color Temperature(CCT):

• 3000-6500K

• Working Temperature(℃):

• -40 - 55

• Working Lifetime(Hour):

• 50000

• Lamp Body Material:

• Aluminum

• IP Rating:

• IP66

• Certification:

• CCC, CQC

• Warranty(Year):

• 5

• Place of Origin:

• Chongqing, China (Mainland)

• Brand Name:

• Silian

• Model Number:

• SDL102

• Product name:

• 70/105/140/210W IP66 130lm/w LED Street Light

• Product group:

• LED Street Light

• Rated power:

• 70/105/140/210W

• Power factor:

• PF>95%

• Harmonic distortion:

• <10%

• Driver Type:

• Potted driver with multi self protections

• Driver conversion efficiency:

• ≥90%

• Surge protection:

• 6KV+10KV

• Mount pole OD:

• 55 to 65mm

• Housing:

• Die cast aluminium with corrosion resistant coating

SupplyAbility

• SupplyAbility:

• 20000 Piece/Pieces per Month for 70/105/140/210W IP66 130lm/w LED Street Light

Packaging & Delivery

• Packaging Details

• Anti Vibration Carton for 70/105/140/210W IP66 130lm/w LED Street Light

• Port

• China Sea & Airports

• Lead Time :

• 2-4 weeks for 70/105/140/210W IP66 130lm/w LED Street Light

Product Description

1. MAIN APPLICATION

70/105/140/210W IP66 130lm/w LED Street Light is mainly application of road and area lighting to highways, urban main roads & branch roads, country roads, factory outdoor roads, residence outdoor roads and etc.

2. DESIGN STANDARD

• GB 7000.1-2007 Luminaires--Part 1:General requirements and tests

• GB 7000.5-2005 Safety requirements of luminaires for road and street lighting

• Q/SG 3-2012 Technical specification of luminaires for road and street lighting


• GB 17743-2007 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

• GB 17625.1-2012 Electromagnetic compatibility - limits - limits for harmonic current emissions (equipment input current ≤ 16A per phase)

• GB/T 18595-2001 Equipment for general lighting purposes--EMC immunity requirements

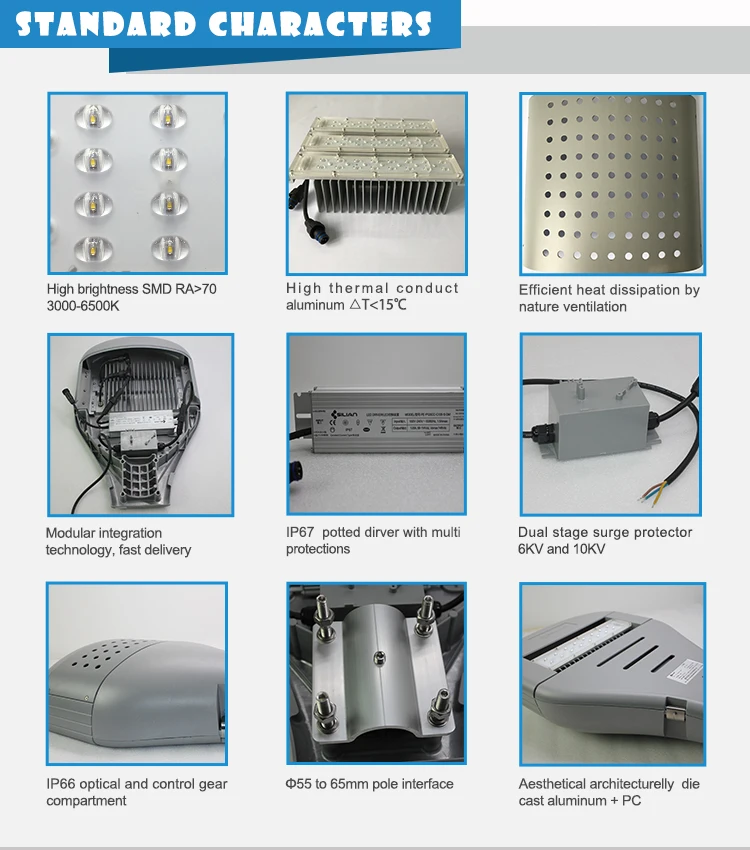

3. STANDARD CHARACTERS

• High brightness LEDs, CRI RA>70, 100 to 130lm/w & 2700-10000K selectable

• Patent modular technology, high thermal aluminium conduct management system ensure temperature rise within 15 degress celsius

• Industrial grade design, zero pollution, zero glare, even light distribution>0.95

• Power factor >0.95, total harmonic distortion <10%

• AC90 to 305V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteference

• DC10 to 28V self-adaption when work with solar & wind power system

• Dual stage built-in surge protector 6KV and 10KV

• Aesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment system

• IP66 ingress protection to both optical and control gear compartment

• Long maintenace free life, 50,000 hours for whole luminare

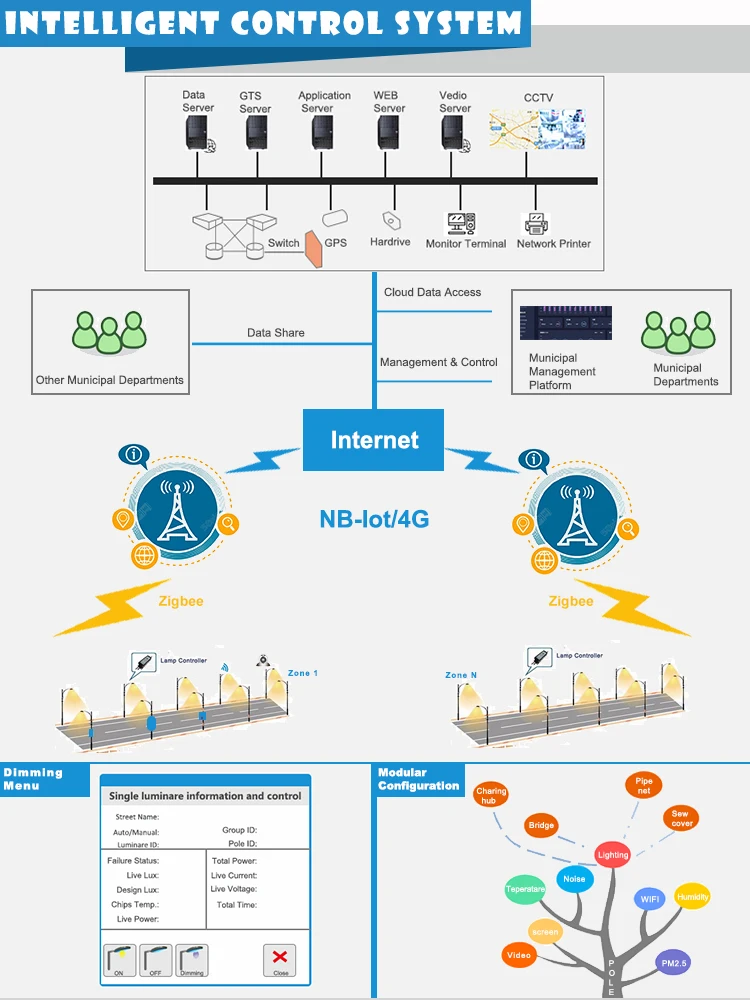

• Mannual / Auto intelligent monitoring & dimming control is optional alongwith control system & Zigbee controller

4. STANDARD SPECIFICATIONS
