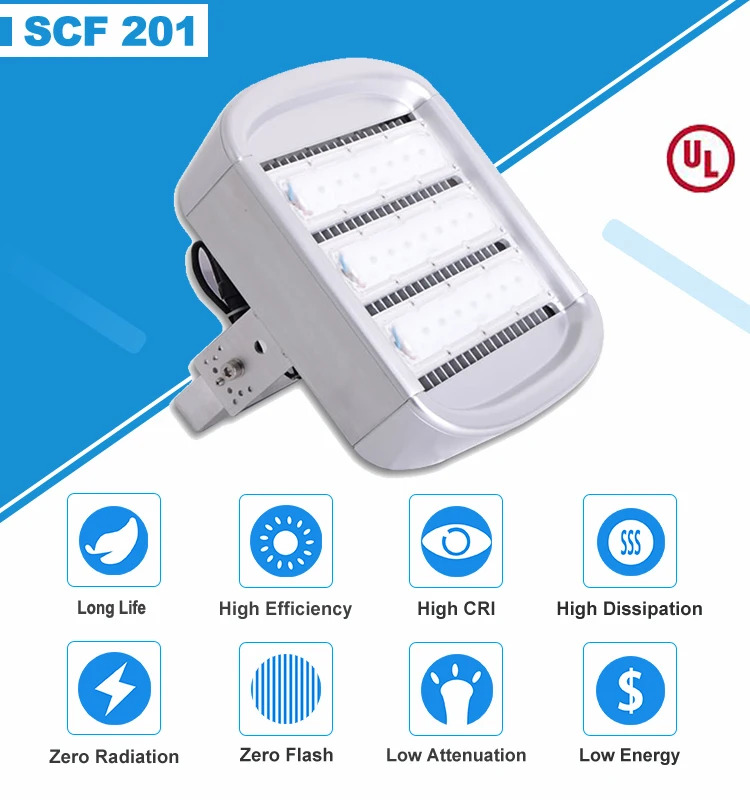

55/110/165/220/275/320W IP66 100lm/w Led High Bay Light

• Type:

• LED Industrial Lighting

• Certification:

• UL

• Product name:

• 55/110/165/220/275/320W IP66 100lm/w Led High Bay Light

• Product group:

• Led Industrial High Bay Light

• CRI:

• Ra≥70

• Color Temperature(CCT):

• 5300-6000K

• Material:

• Aluminum alloy+PC

• Ingress protection:

• IP66

• Driver Type:

• Potted driver with multi self protections

• Input Voltage(V):

• AC90-305V

• Power factor:

• PF>95%

• Warranty(Year):

• 5

SupplyAbility

• SupplyAbility:

• 20000 Piece/Pieces per Month for 55/110/165/220/275/320W IP66 100lm/w Led High Bay Light

Packaging & Delivery

• Packaging Details

• Anti Vibration Carton for 55/110/165/220/275/320W IP66 100lm/w Led High Bay Light

• Port

• China Sea & Airports

• Lead Time :

• 2-4 weeks for 55/110/165/220/275/320W IP66 100lm/w Led High Bay

Product Description

1. MAIN APPLICATION

55/110/165/220/275/320W IP66 100lm/w Led High Bay Light is mainly application of safe area lighting to workshop, factory, warehouse,  indoor dock, toll gate and etc.

2. DESIGN STANDARD

• GB 7000.1-2007 Luminaires--Part 1:General requirements and tests

• GB 7000.201-2008 Luminaires - Part 2-1: Particular requirements - Fixed general purpose luminaires


• GB 17743-2007 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

• GB 17625.1-2012 Electromagnetic compatibility - limits - limits for harmonic current emissions (equipment input current ≤ 16A per phase)

• GB/T 18595-2001 Equipment for general lighting purposes--EMC immunity requirements

3. STANDARD CHARACTERS

• High brightness LEDs, CRI RA>70, 100 to 120lm/w & 5300-10000K selectable, annual optical Attenuation<3%

• Patent modular technology, high thermal aluminium conduct management system ensure temperature rise within 15 degress celsius

• Industrial grade design, zero pollution, zero glare, even light distribution>0.95

• Power factor >0.95, total harmonic distortion <10%

• AC90 to 305V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteference

• Aesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment system

• IP66 ingress protection to both optical and control gear compartment

• Long maintenace free life, 50,000 hours for whole luminare

4. STANDARD SPECIFICATIONS
