Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
132pcs 2835 smd
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Lamp Power(W):
12
Lamp Luminous Flux(lm):
1080
Lamp Luminous Efficiency(lm/w):
80
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
CCC, CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
New Viewpoint
Model Number:
NV-MBD-RD
Product name:
led round panel light
Keyword:
led round panel light
Color:
Pure White
Power:
3/4/6/9/12/15/18/20/24W
Material:
Aluminum Alloy
Size:
2.5/3/4/5/6/8/11 Inch
Shape:
Round Shape
Application:
House
Name:
panel light
SupplyAbility
SupplyAbility:
300000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
One panel in an Inner box, one master carton contain 60 inner boxes
Inner Carton Size: 19.1 x 14.8 x 3CM
Inner Carton N.W.: 0.31KG
Master Carton Size: 52x 32x 40CM
Master Carton G.W.: 19.6KG
Lead time: 3-10 days
Port
Ningbo Shanghai Shenzhen
Lead Time :
Shipped in 7 days after payment

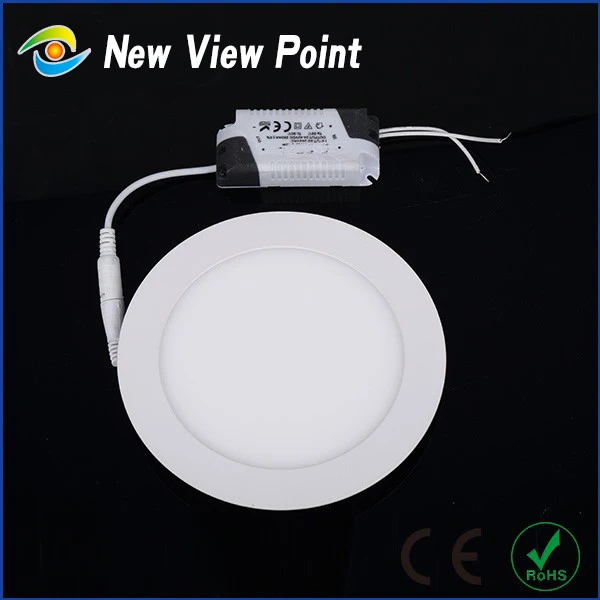

2017 new CE RoHS round series home lighting made in China round led panel light

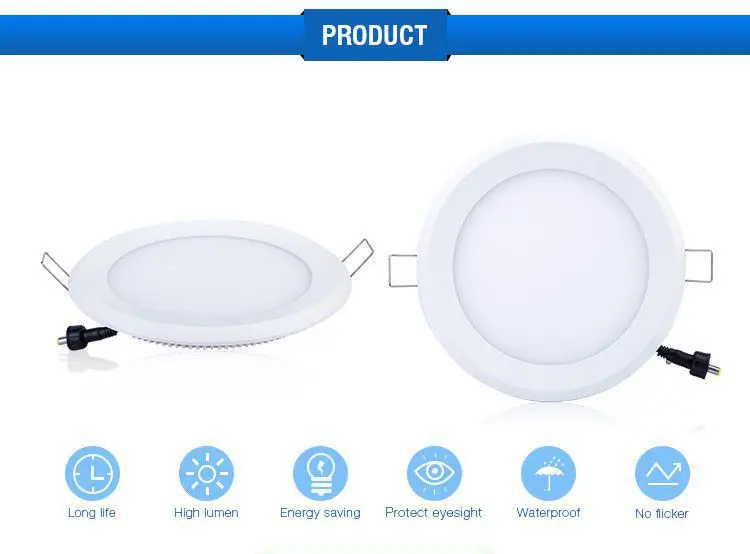

Product Features
Low power consumption, electricity consumption of incandescent lamps of 10 to 20%, energy-saving lamps of 40 ~ 60%
The brightness is around 650lumens .
The color is good, close to the sunlight, the color distortion
Constant current circuit design, wide voltage range(85V~265V)
Aluminum profile suite+ PMMAcover guarantees strong heat dissipation!
High Power Factor, reaching 0.93
No mercury, less CO2 emission, eco-friendly to the environment
Patented thermal management design, self-heat-dissipation, free from radiator.
Long lifespan of this LED down light is around 50000hours.
No flicker, low power consumption, quick start, no ultraviolet ray and infrared ray.
Product Specifications
Item No | Size | Cutout (mm) | Input voltage(AC) | Power | brightness | LED | LED Qty |
type | |||||||
NVP-3W-AMY01-2.5 | 2.5inch Φ85mm*15mm | Φ70mm | 85-265V/12V DC | 3W | 250LM | 2835 | 15 |
NVP-4W-AMY01--3 | 3inchΦ110mm*15mm | Φ90mm | 85-265V/12V DC | 4W | 340LM | 2835 | 20 |
NVP-6W-AMY01-4 | 4inchΦ120mm*15mm | Φ100mm | 85-265V/12V DC | 6W | 500LM | 2835 | 30 |
NVP-9W-AMY01-5 | 5inchΦ145mm*15mm | Φ130mm | 85-265V/12V DC | 9W | 750LM | 2835 | 45 |
NVP-12W-AMY01-6 | 6inchΦ175mm*15mm | Φ150mm | 85-265V/12V DC | 12W | 1000LM | 2835 | 60 |
NVP-15W-AMY01-7 | 7inchΦ200mm*15mm | Φ175mm | 85-265V/12V DC | 15W | 1300LM | 2835 | 75 |
NVP-18W-AMY01-8 | 8inchΦ225mm*15mm | Φ200mm | 85-265V/12V DC | 18W | 1500LM | 2835 | 90 |
NVP-20W-AMY01-8 | 8inchΦ236mm*15mm | Φ215mm | 85-265V/12V DC | 20W | 1500LM | 2835 | 100 |
NVP-24W-AMY01-10 | 10inchΦ300mm*15mm | Φ280mm | 85-265V/12V DC | 24W | 1500LM | 2835 | 120 |
