MnO2+Li++e- | → | MnO2Li | |
Cathode reaction: | Li | → | Li+e- |
Total reaction: | MnO2+Li | → | MnO2Li |
GENERAL SPECIFICATION
Item | Unit | Specifications | Conditions | |
Nominal Voltage | V | 3.0 | Standard Discharge | |
Nominal Capacity | mAh | 70 | Standard discharge with load 15kΩ,till 2.0v end-voltage | |
Storage temperature | ℃ | 0~35 | ||
Operation temperature | ℃ | -20~60 | ||
Standard Weight | g | 1.3 | Unit cell | |
Dimension | Diameter | 16.0 (- 0.3mm) | ||
Height | 2.0 (-0.3mm) | |||
Discharge | Initial | Standard | 1050h | Continuous discharge with load 15kΩ, till 2.0V end-voltage at 20~25℃ |
Minimum | 1000h | |||
After 12 Months Storage | Standard | 1000h | ||
Minimum | 950h | |||
Packaging & Delivery
Packaging Details
Packing:Blister card or tray packing

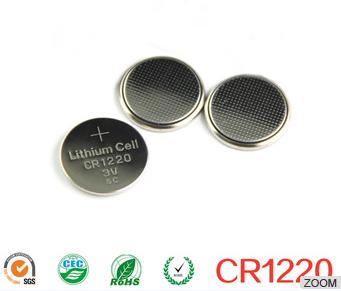

2017 Popular sales custom 3V CR1220 button cell battery
Delivery Time:Shipped in 30 days after payment
