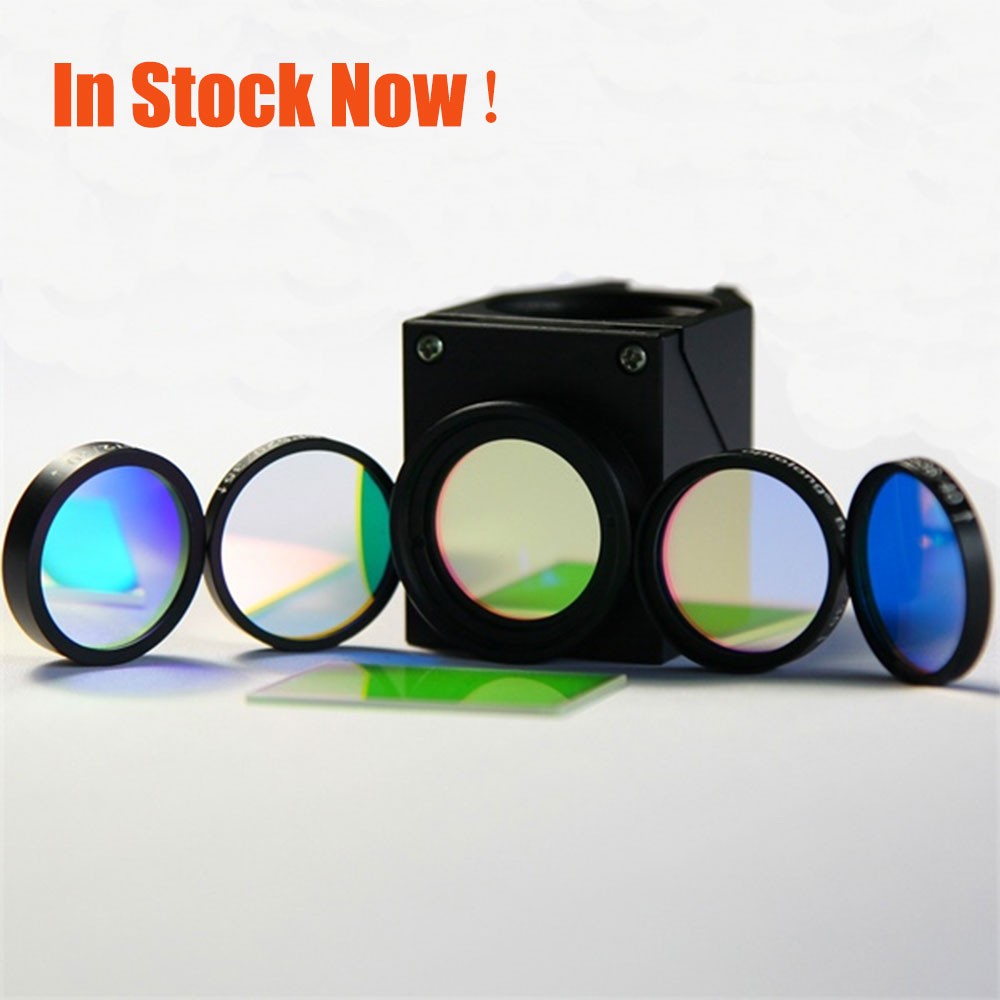

In Stock!! transmission filter in fluorescence filter set
| Filter Type | Fluoresence Filter Set | ||
| Coating Type | Hard Coated | ||
| Part Number | FITC-BP02A | ||
| Individual Filter | Excitation Filter | Emission Filter | Dichroic Mirror |
| 475/40nm | BP-EM15A | BP-DM15A | |
| CWL/FWHM | 365/47nm | 530/50nm | 500nm |
| Angle of Incidence | 0±5° | 0±5° | 45° |
| Transmission | >80% | >80% | >90% |
| Size(mounted) | Ø25mm x 5mm | Ø25mm x 3.5mm | Ø25.2mm x 35.6mm x 1.05mm |
| Wavelength Tolerance | ±3nm | ||
| Blocking | OD>5 | ||
| Scratch-Dig | 60-40 | ||
| Substrate | Fused Silica, B270 | ||
| Compatible Microscopes | Most common Nikon, Olympus, and Zeiss Microscopes | ||
| Compatible Fluorophore | DPH, AMCA-X, MEQ, AMC, AMCA,DMACA,4-Methylumbelliferone,6-Amino-Quinolin,7-Hydroxy-4-Methylcoumarin,ß-methlyumbelliferone,ABQ,Alexa Fluor® 350,Aminocoumarin,Bis-aminophenyl-oxadizole ,Bisbenzamide (Hoechst 33258),Blue GFP,CellTracker™ Blue CMAC,Coumarine maleimide (CPM). | ||
Note:
The fluorescence filter set include excitation filter, emission filter and dichroic mirror. Each of them can be sold separately.
We could sell the fluorescence filter cube. But it's price isn’t included in the fluorescence filter. If you need it, please let us know.
We will quote to you accroding to the quantity.
